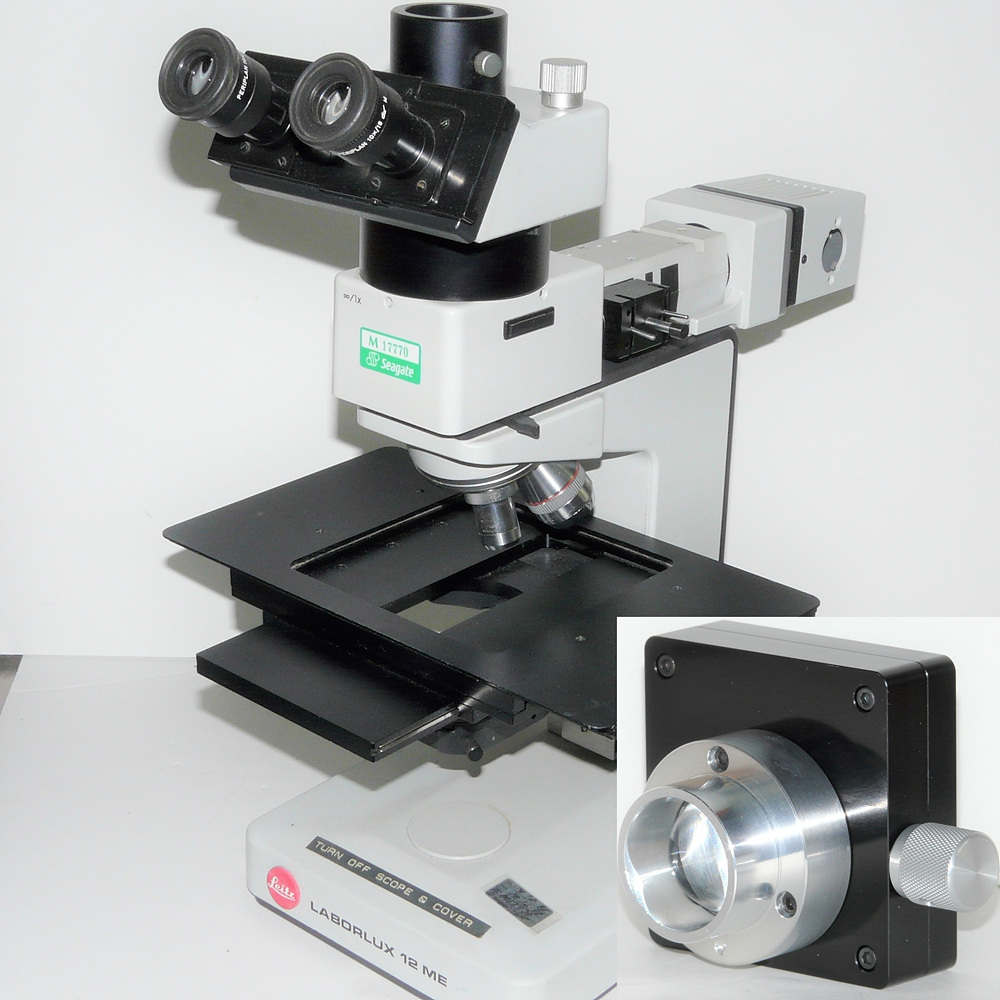

Leitz Laborlux Illuminator

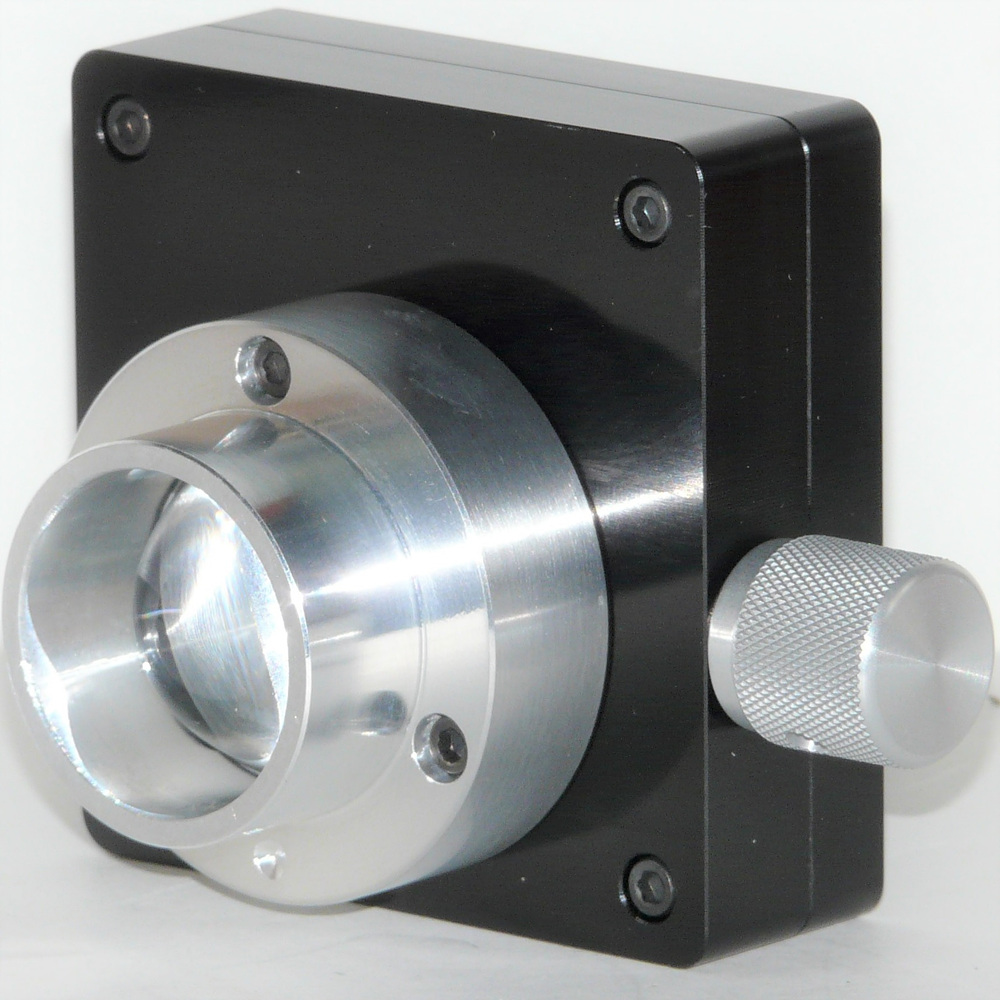

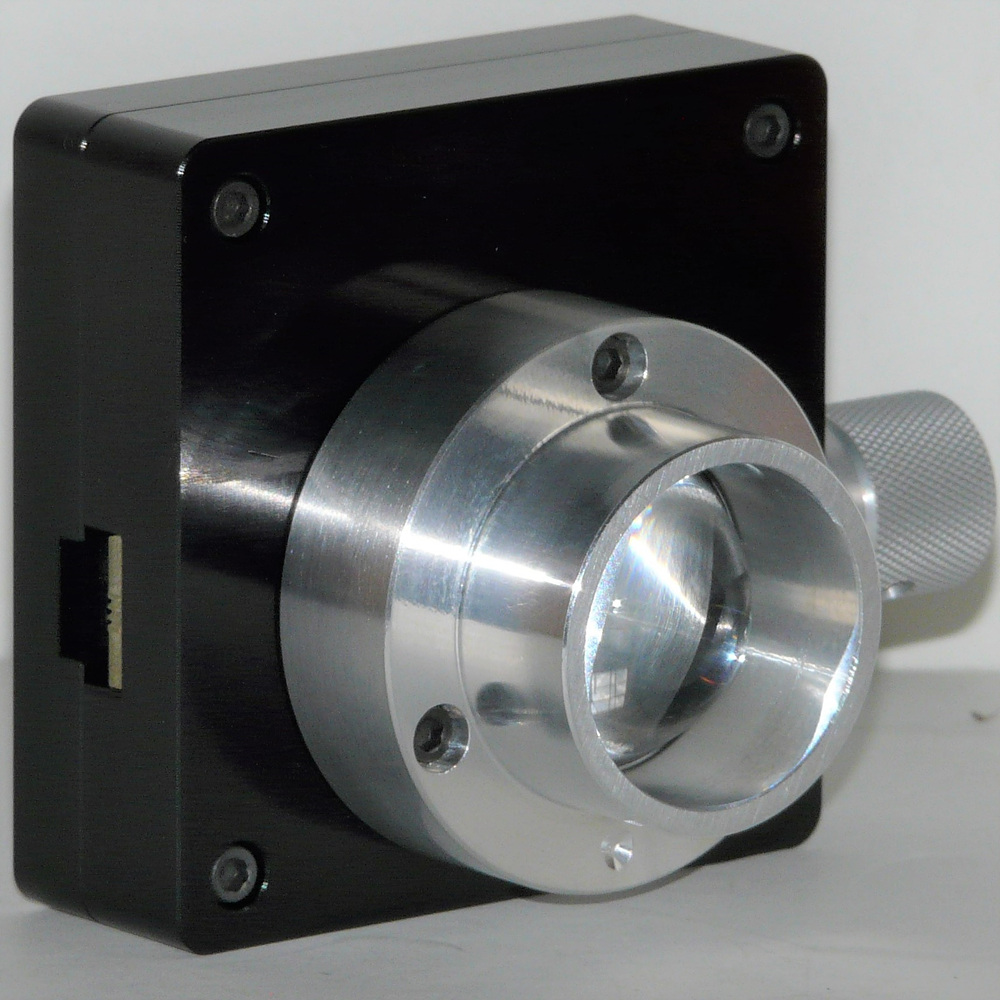

This LED illuminator replaces the original Leitz Laborlux illuminator. Provides a whiter, brighter light than the original, while consuming 90% less energy and generating 90% less heat. Intensity control is continuous from 0-100%. Problems with heat damaged bulb sockets, connector and power supply failure are all eliminated. Never change bulbs again. Don’t waste money on a new microscope because of a bad illuminator. Your “old” microscope probably has better optics and mechanics than a new one. You can keep your perfectly good microscope working for a fraction of the price of an inferior new one. Bring your Leitz Laborlux microscope up to date. Replace the old Laborlux microscope light with a new Nanodyne LED system. All Nanodyne illuminator systems include the power supply and required cables. Everything required for the illuminator is included. Your new Nanodyne illuminator will add decades of useful life to your microscope.

Note that this illuminator replaces Leitz Laborlux Top illuminator. If you want Bottom illuminator, our bottom illuminator unit will meet your needs.

• Custom-designed to replace the original Leitz Laborlux illuminator.
• Due to the convenient location of the illuminator on the microscope, the standard location for the intensity adjustment is on the illuminator housing. Remote intensity control is still an option. Contact us if this is desired.
• Easy installation and most tools provided.
• All illuminator systems are backed by our 3-year warranty.

Specifications:

• Illuminator Dimensions: 2.45 x 2.45 x 1.595 inch

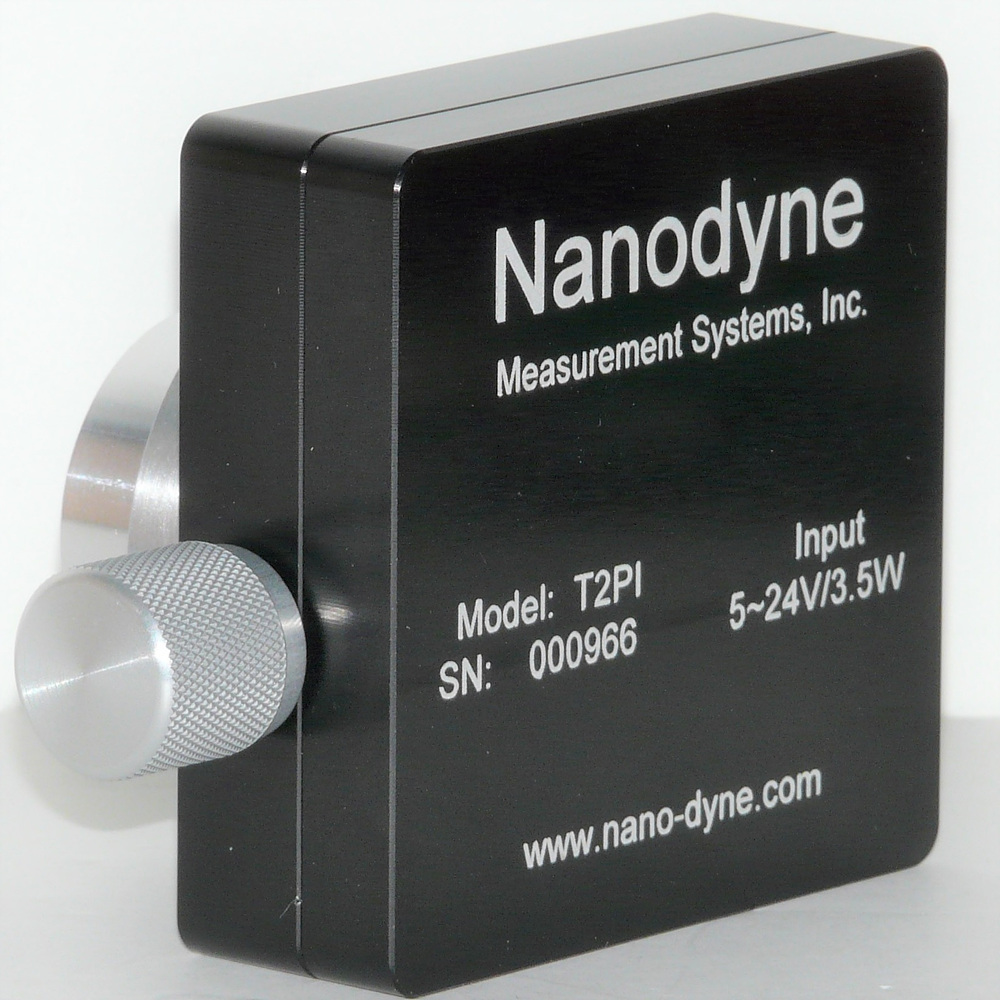

• Power Requirements: 5 to 24V/3.5W
• Brightness: 410 lm
• LED Expected Lifetime: 80% of Original Brightness at 88,500 Hours
• Material: Anodized 6061 T6 Aluminum

Included Items – Click for Drawing (Mounted Pot – Standard)

Included Items – Click for Drawing (Remote Pot – On request)

*NOTE: Set screws are pre-installed. Please inspect aluminum adapter before contact us.
