Leitz Laborlux Bottom Illuminator

$495.00

Clear

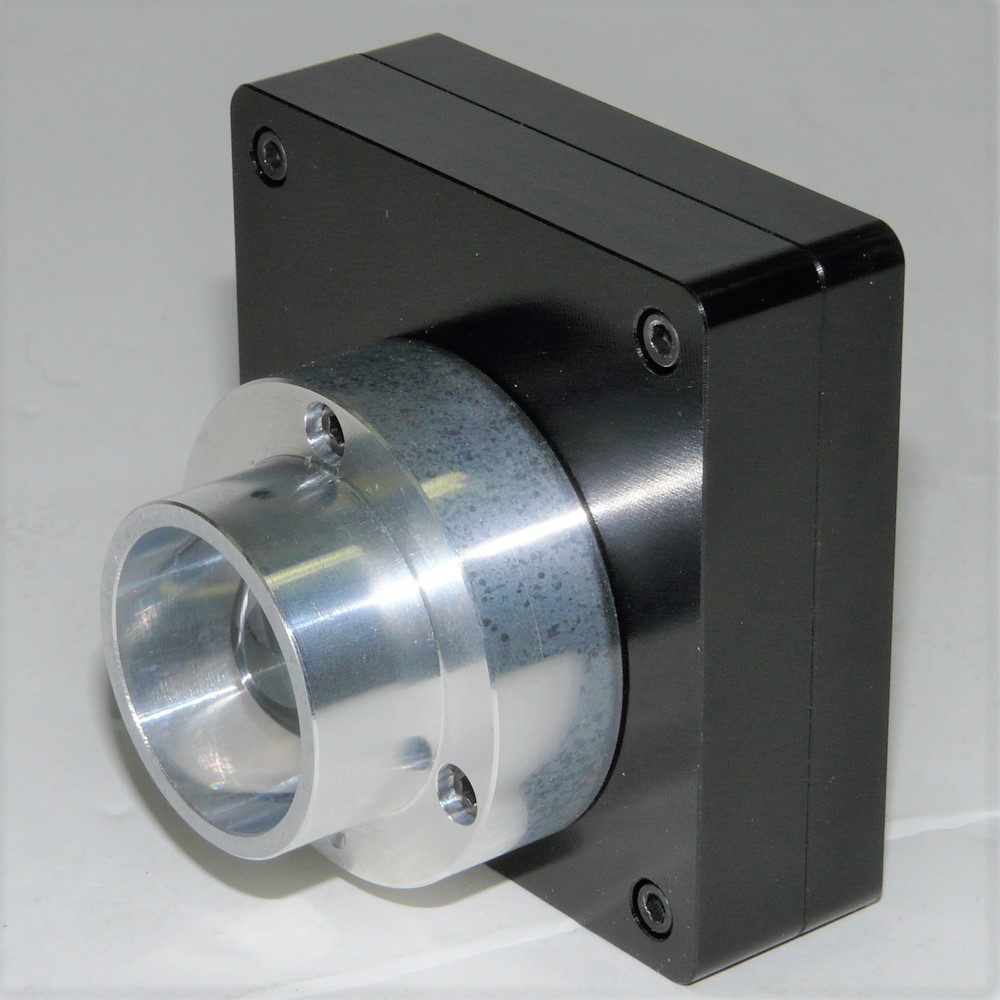

This LED illuminator replaces the original Leitz Laborlux Bottom illuminator. Provides a whiter, brighter light than the original, while consuming 90% less energy and generating 90% less heat. Intensity control is continuous from 0-100%. Problems with heat damaged bulb sockets, connector and power supply failure are all eliminated. Never change bulbs again. Don’t waste money on a new microscope because of a bad illuminator. Your “old” microscope probably has better optics and mechanics than a new one. You can keep your perfectly good microscope working for a fraction of the price of an inferior new one. Bring your Leitz Laborlux microscope up to date. Replace the old Laborlux Bottom microscope light with a new Nanodyne LED system. All Nanodyne illuminator systems include the power supply and required cables. Everything required for the illuminator is included. Your new Nanodyne illuminator will add decades of useful life to your microscope.

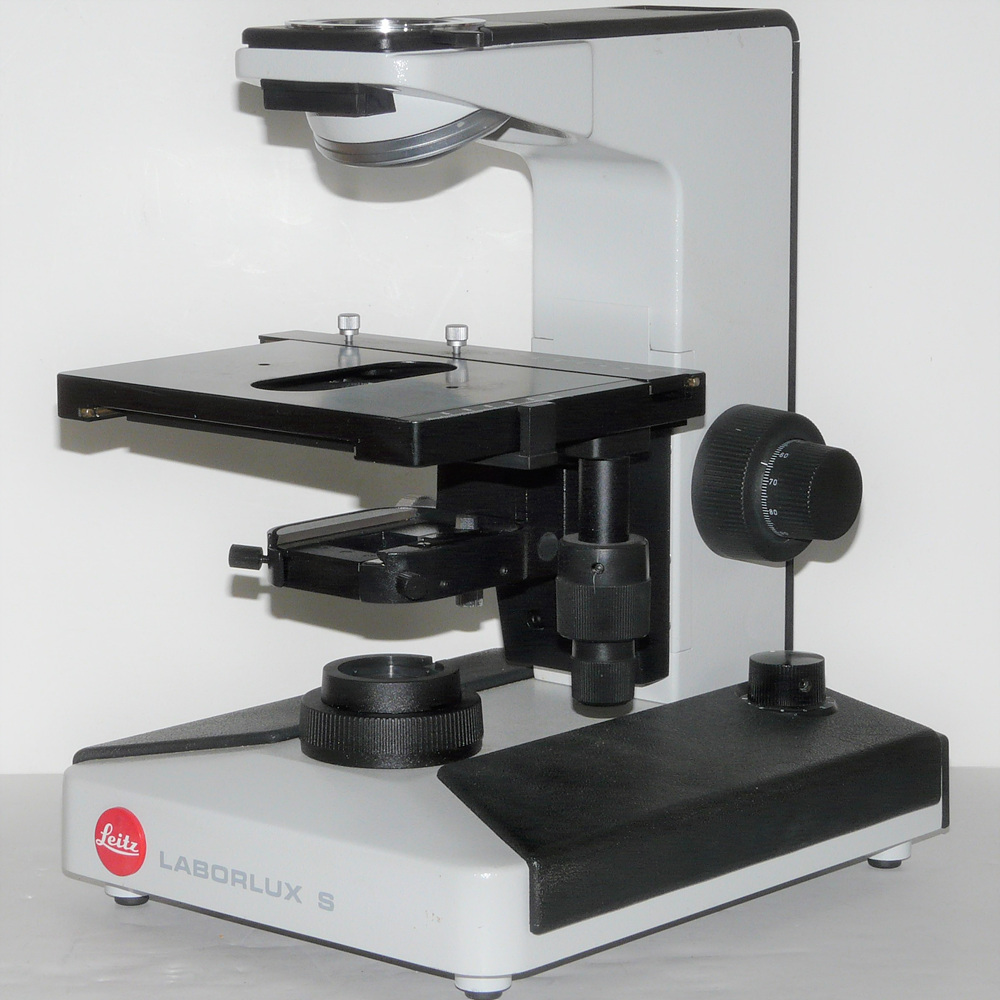

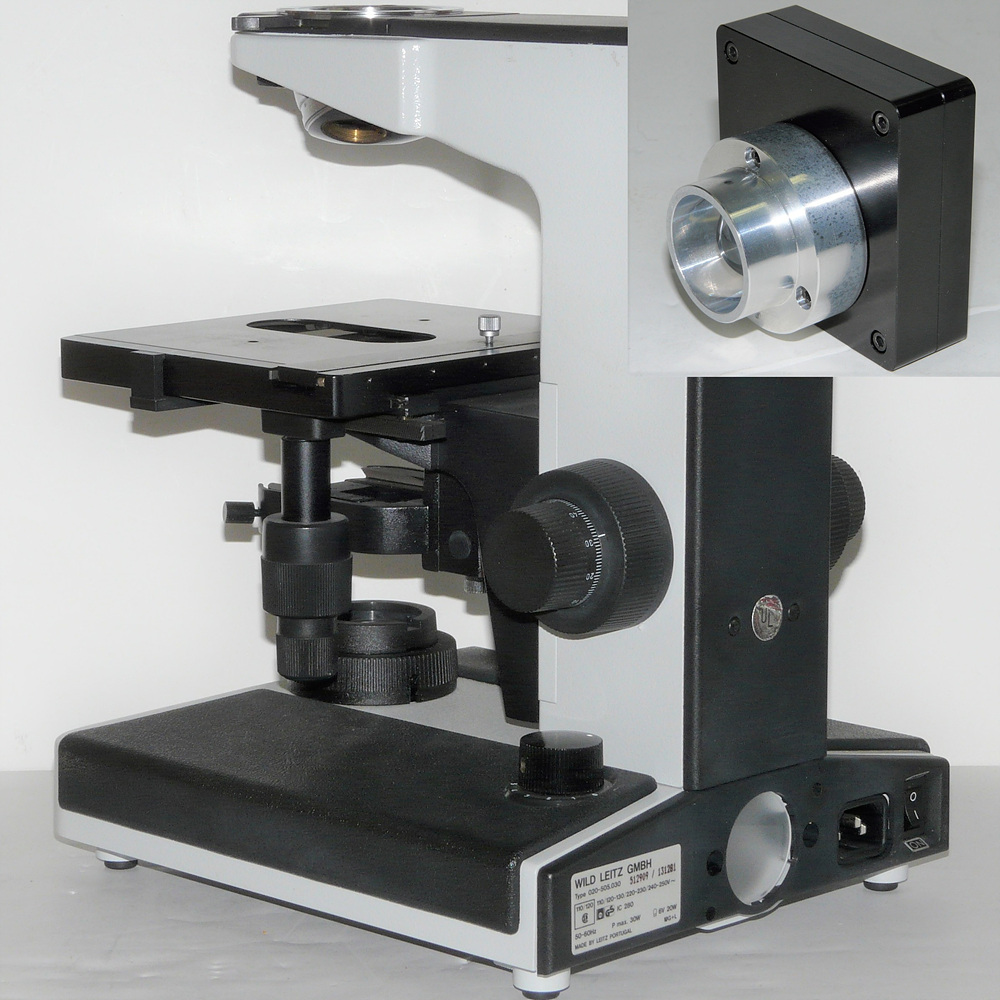

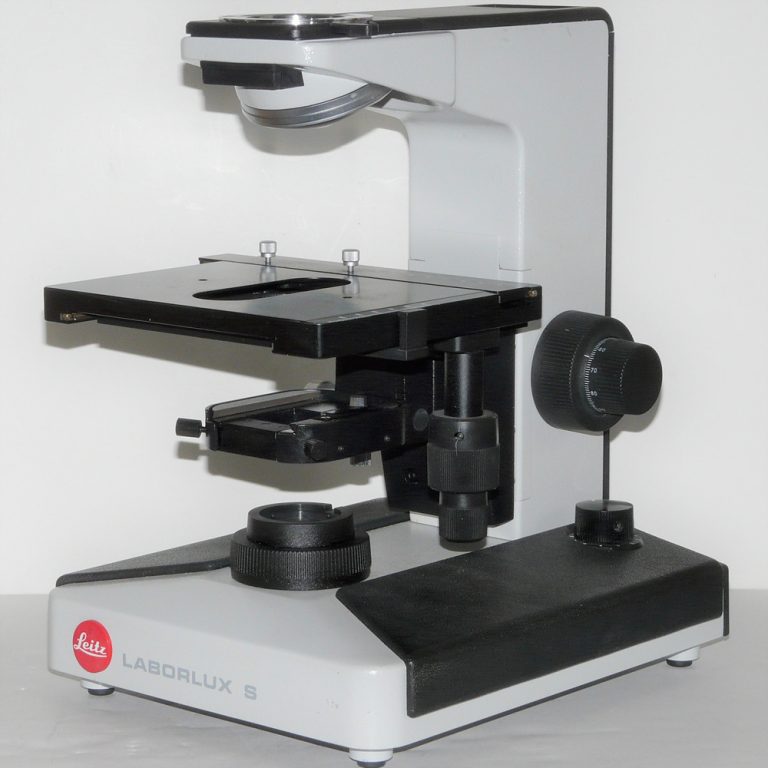

Note that this illuminator replaces Leitz Laborlux Bottom illuminator. If you want Top illuminator, our top illuminator unit will meet your needs.

  • Custom-designed to replace the original Leitz Laborlux Bottom illuminator.
  • Remote adjustment on an existing control on the microscope is standard. Brightness control potentiometer on the new illuminator available on request.
  • Easy installation and most tools provided.
  • All illuminator systems are backed by our 3-year warranty.

Specifications:

  • Illuminator Dimensions: 2.45 x 2.45 x 1.595 inch

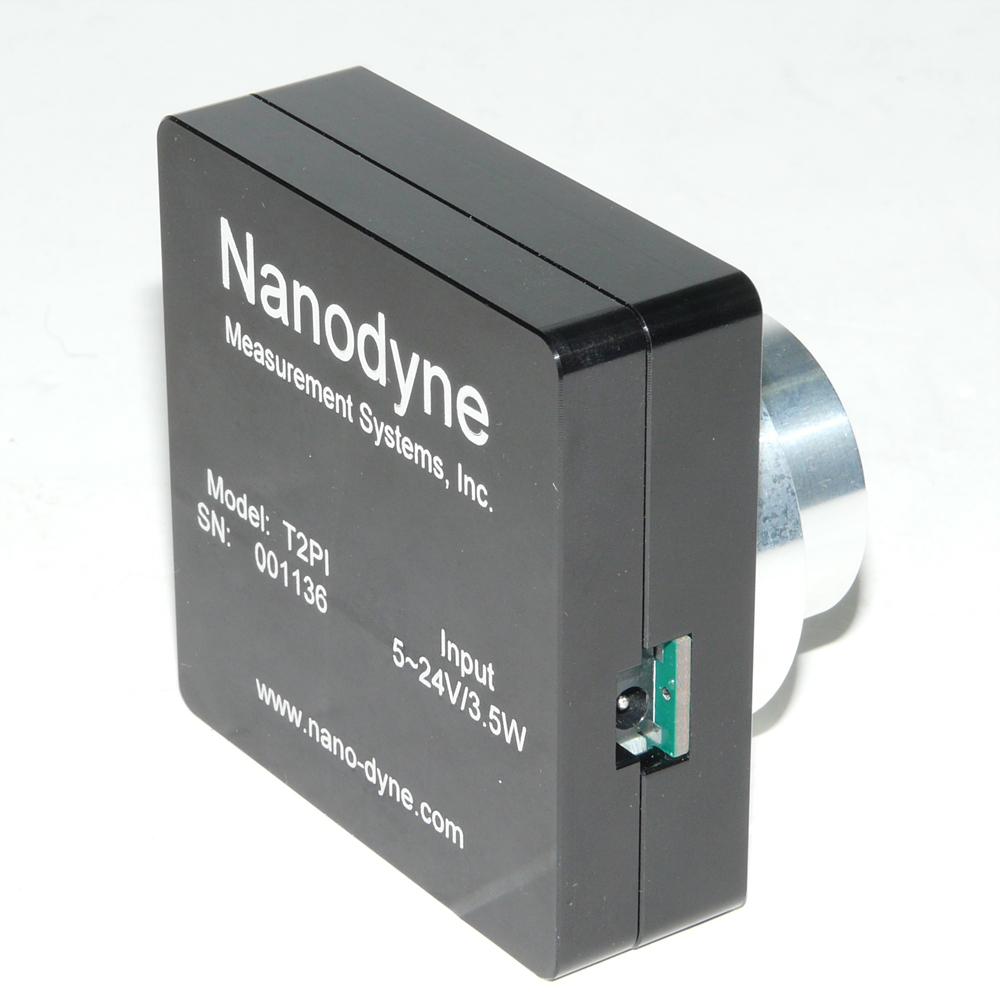

  • Power Requirements: 5 to 24V/3.5W
  • Brightness: 410 lm
  • LED Expected Lifetime: > 80% of Original Brightness at 88,500 Hours
  • Material: Anodized 6061 T6 Aluminum

Included Items – Click for Drawing (Remote Pot – Standard)

Installation Instructions – Click for Document

Included Items – Click for Drawing (Mounted Pot – On request)

Adjustment Options

Remote adjustment pot (standard), Mounted adjustment pot (on request)
