Olympus BH2-UMA Illuminator

$675.00

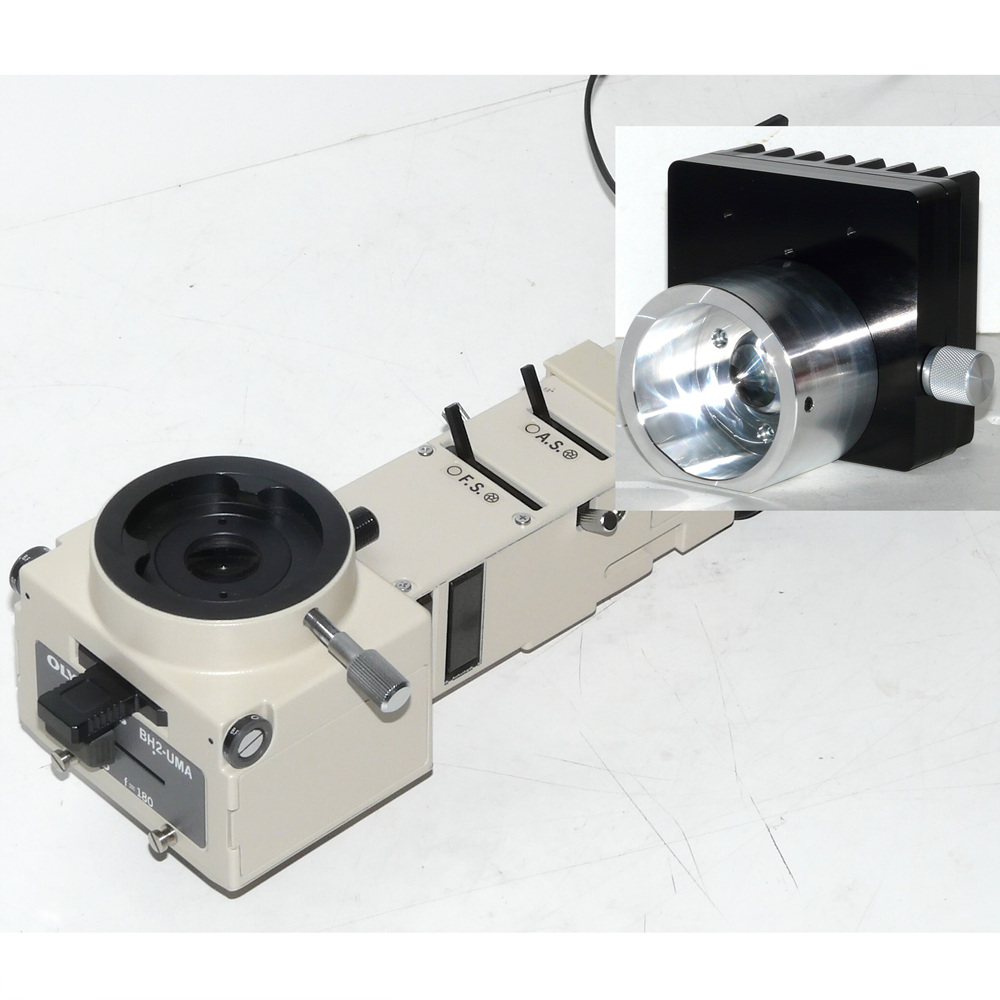

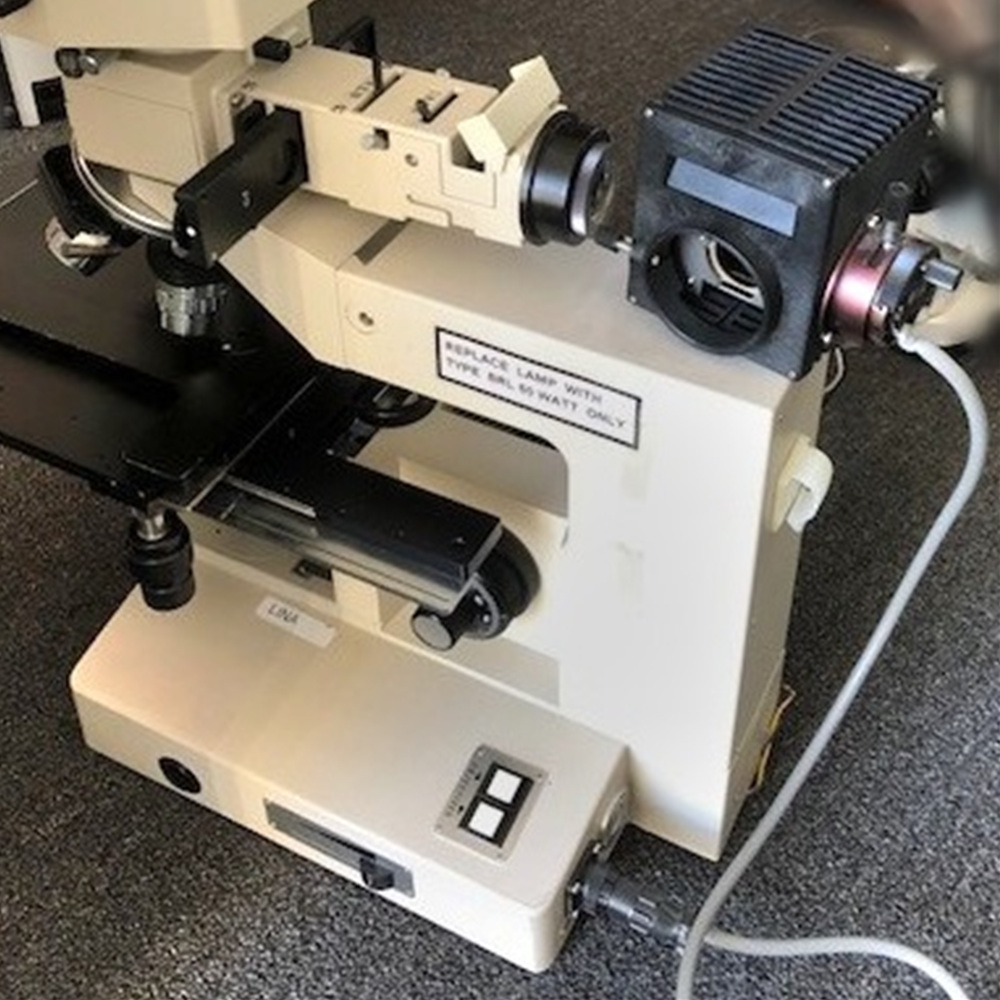

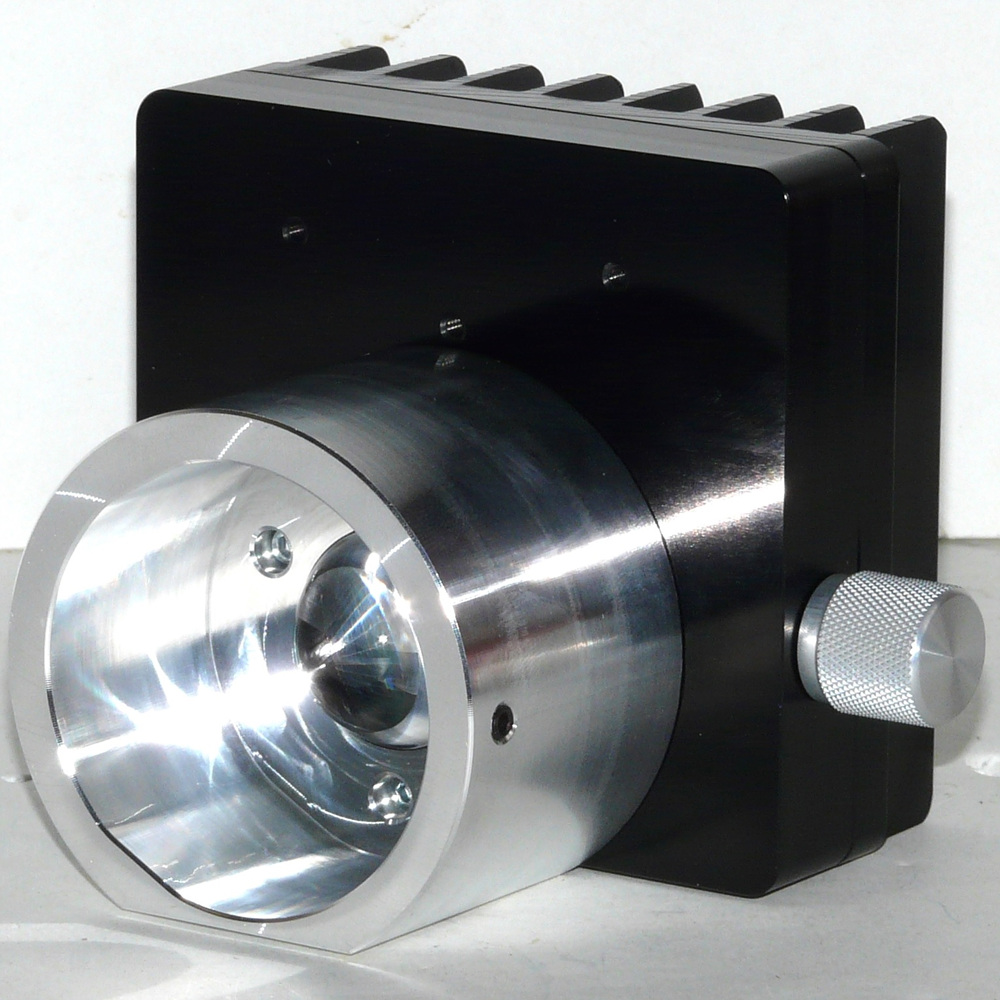

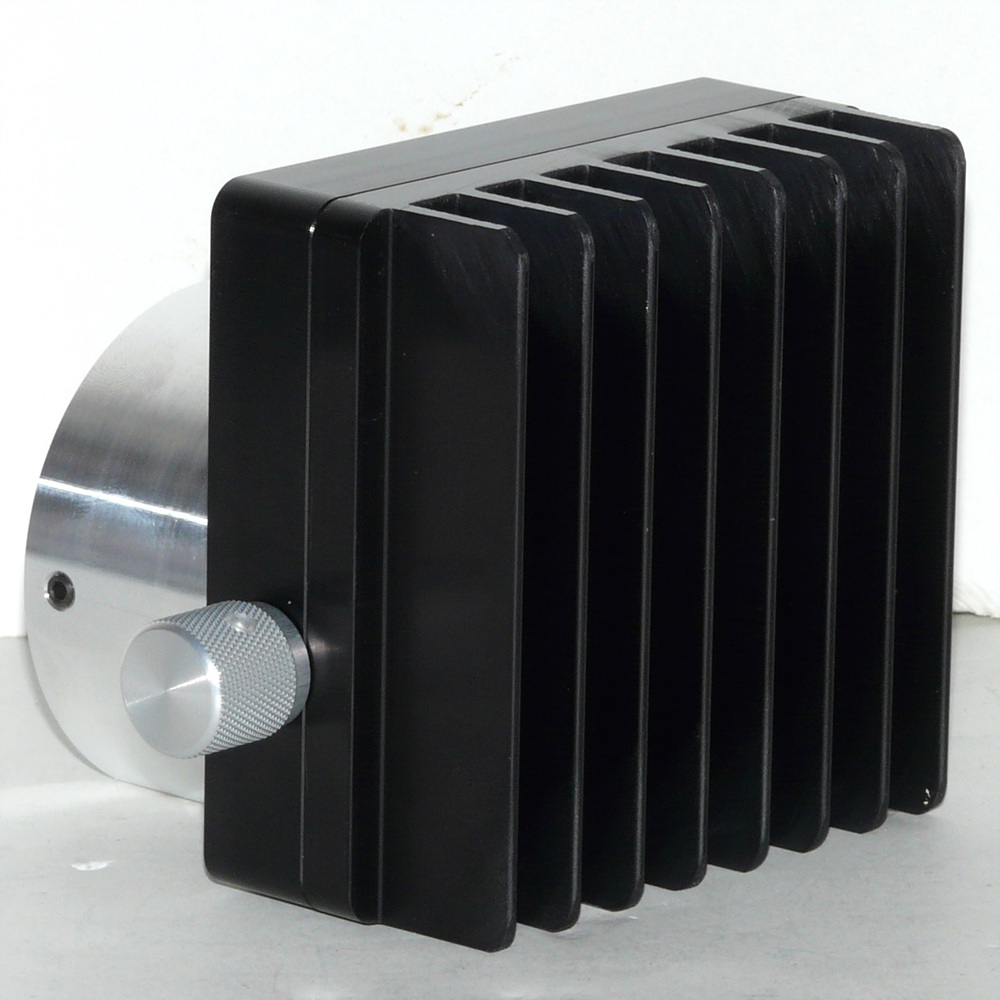

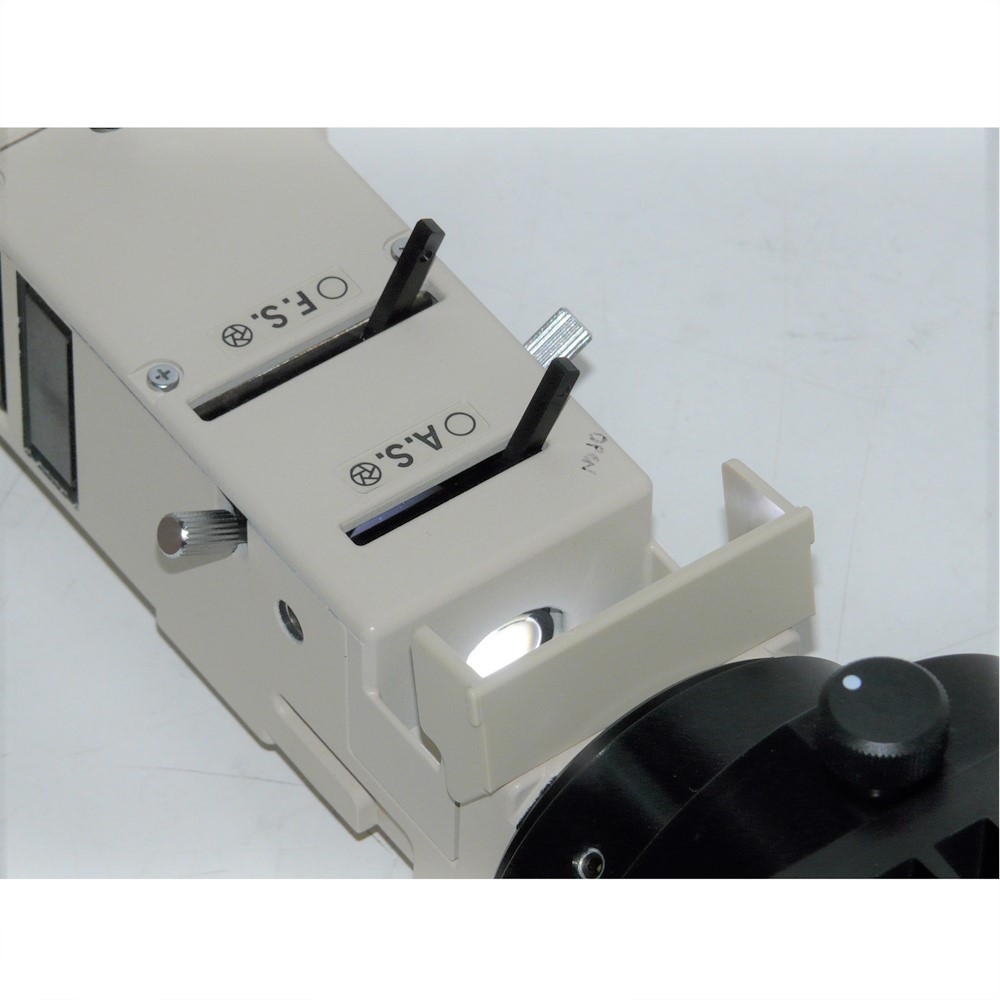

This LED illuminator replaces the original Olympus BH2-UMA illuminator. It provides a whiter, brighter light than the original, while using far less power. Intensity control is continuous from 0-100%. Please note – We are selling a replacement for the original illuminator for the BH2-UMA module. The light colored UMA module is not included.

  • Custom-designed to fit the form factor of the Olympus BH2-UMA.
  • Brightness control potentiometer on the illuminator is standard. Remote adjustment on the microscope available on request.
  • Easy installation with instructions and most tools provided.
  • All illuminator systems are backed by our 3-year warranty.

Specifications:

  • Illuminator Dimensions: 3.25 x 3.50 x 2.89 inch
  • Power Requirements: 5V 2.5A
  • Brightness: 825 lm
  • LED Expected Lifetime: >50,000 Hours
  • Material: Anodized 6061 T6 Aluminum

Included Items – Click for Drawing

Installation Instructions – Click for Document
