Zeiss Standard Illuminator

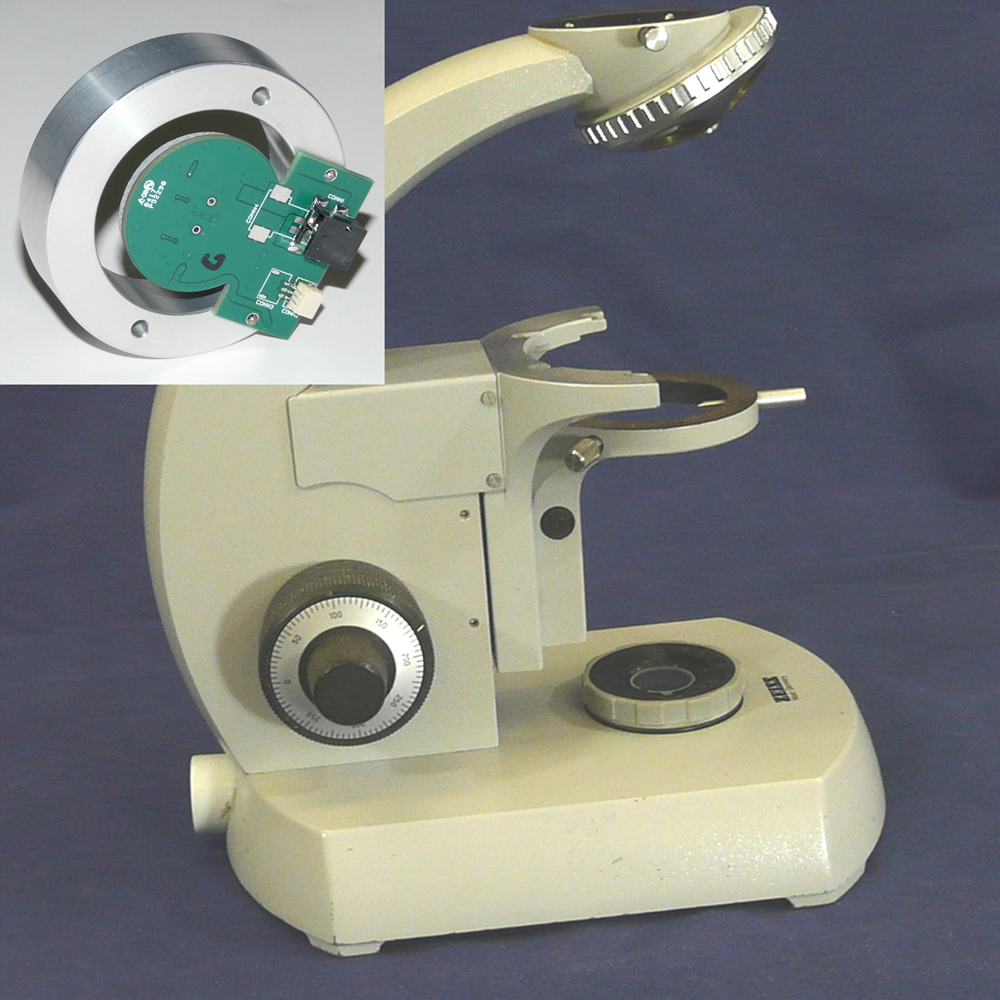

This LED illuminator replaces the original Zeiss Standard illuminator. It provides a whiter, brighter light than the original, while using far less power. Intensity control is continuous from 0-100%. Don’t replace your microscope because of a bad illuminator. Replace your old Zeiss Standard microscope light with a new Nanodyne LED system. No more bulb replacements. Replaces the entire original plastic assembly which becomes brittle and falls apart.

  • Custom-designed to replace the original Zeiss Standard illuminator.

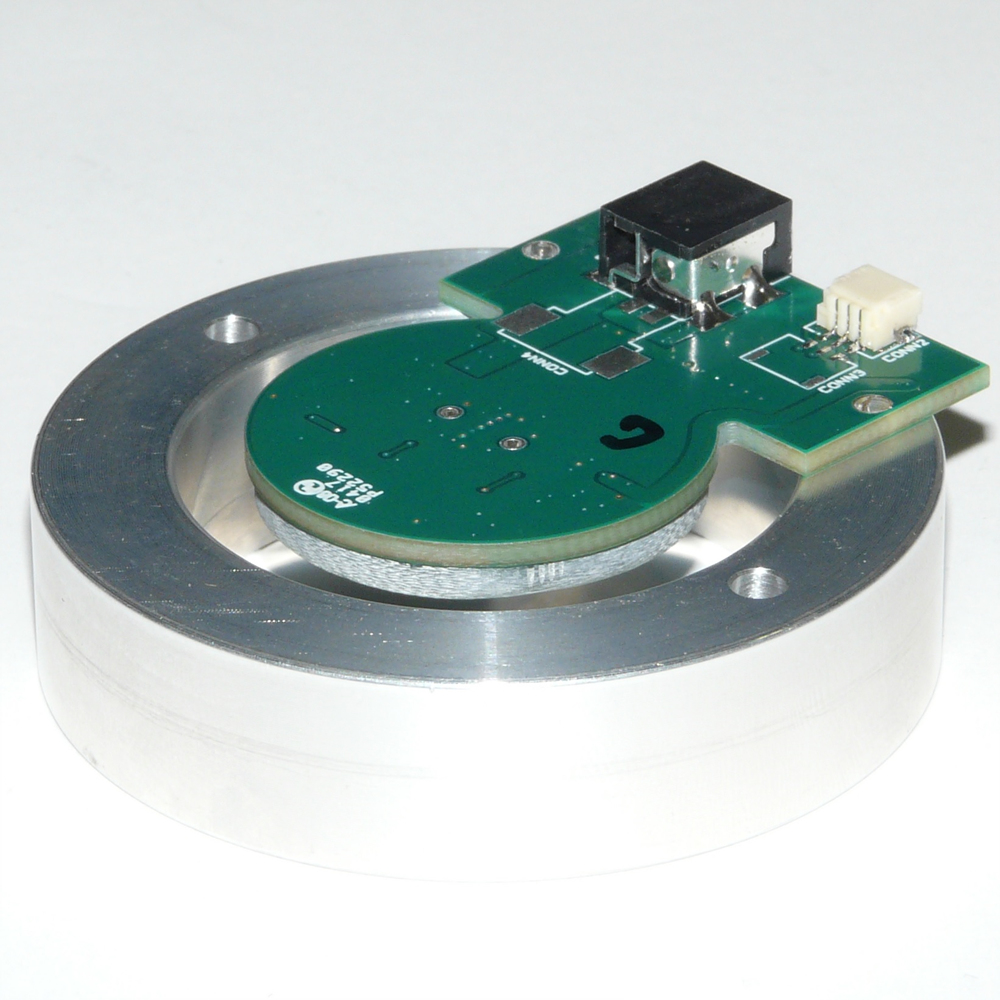

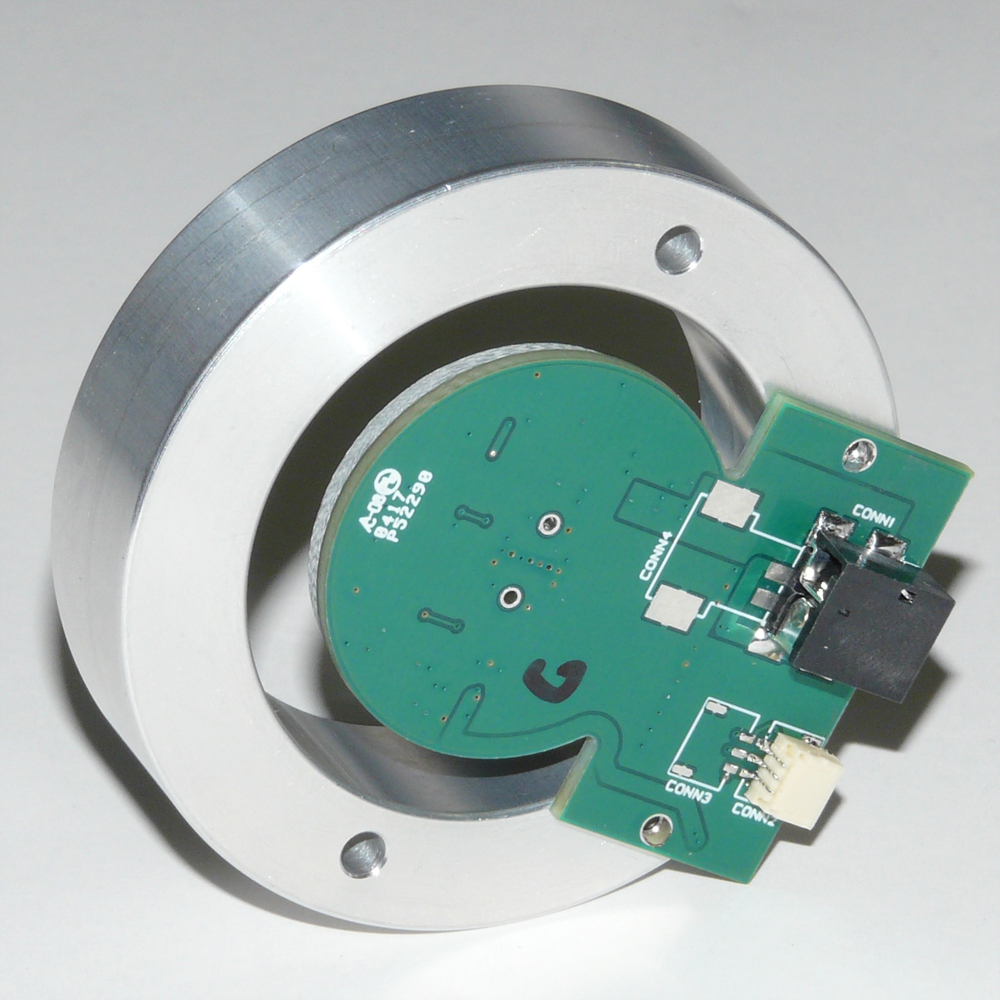

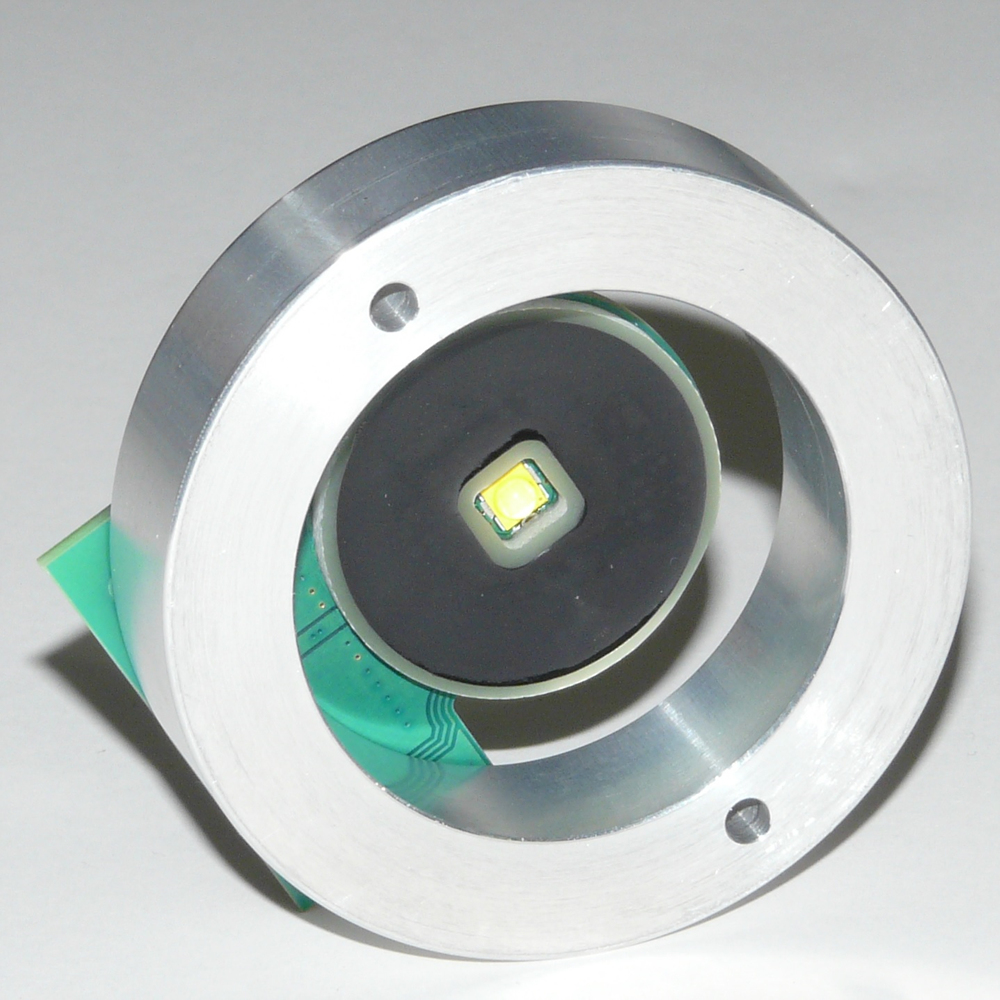

  • Entire illuminator assembly is housed within the base of the microscope.
  • Easy installation with instructions and most tools provided.
  • All illuminator systems are backed by our 3-year warranty.


  • Illuminator Dimensions: 2.2 inch diameter x 0.57 inch high
  • Power Requirements: 5 to 24V/3.5W
  • Brightness: 410 lm
  • LED Expected Lifetime: 80% original brightness at 88,500 hours
  • Material: Machined 6061 T6 Aluminum

Included Items

Installation Instructions
