Olympus CHBS Illuminator

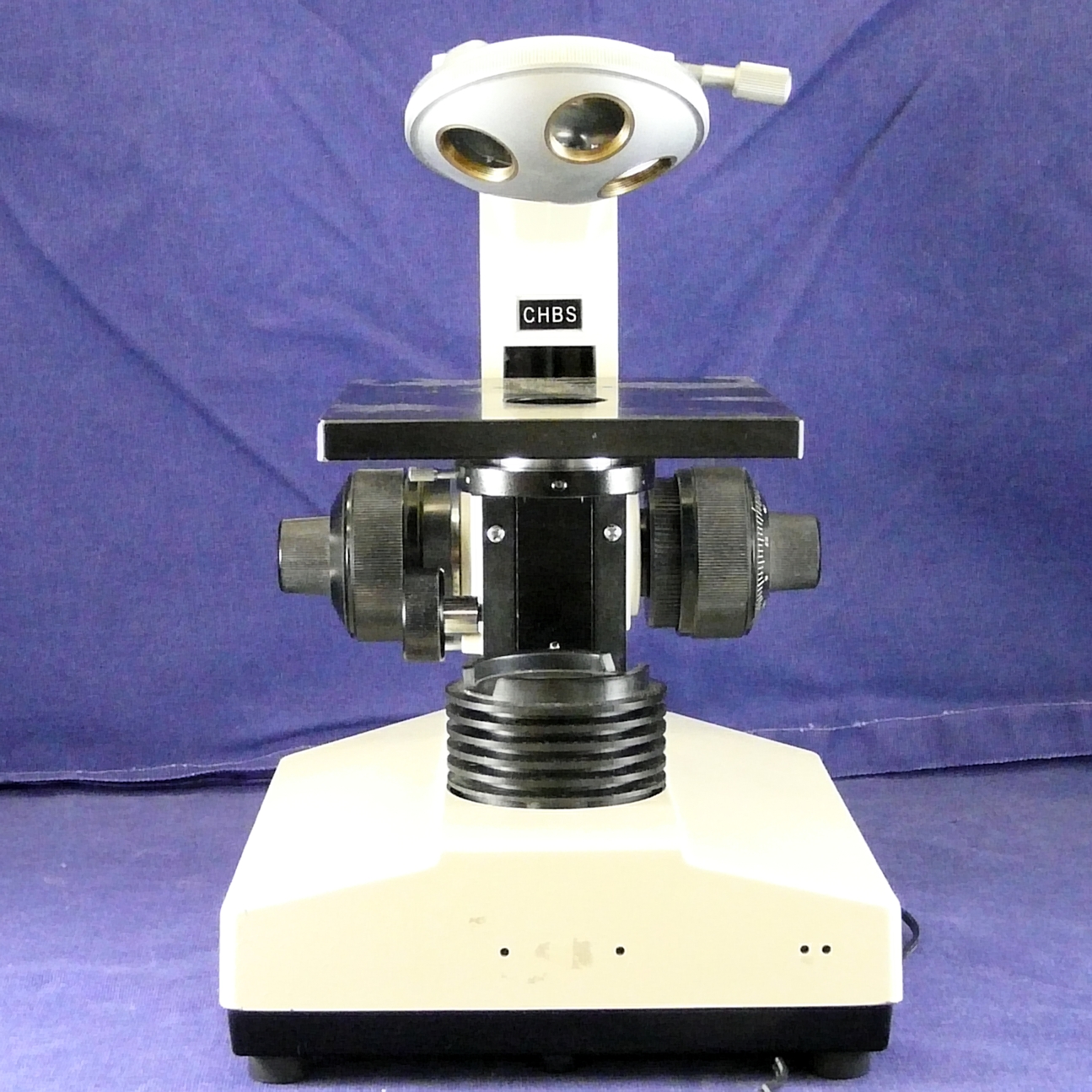

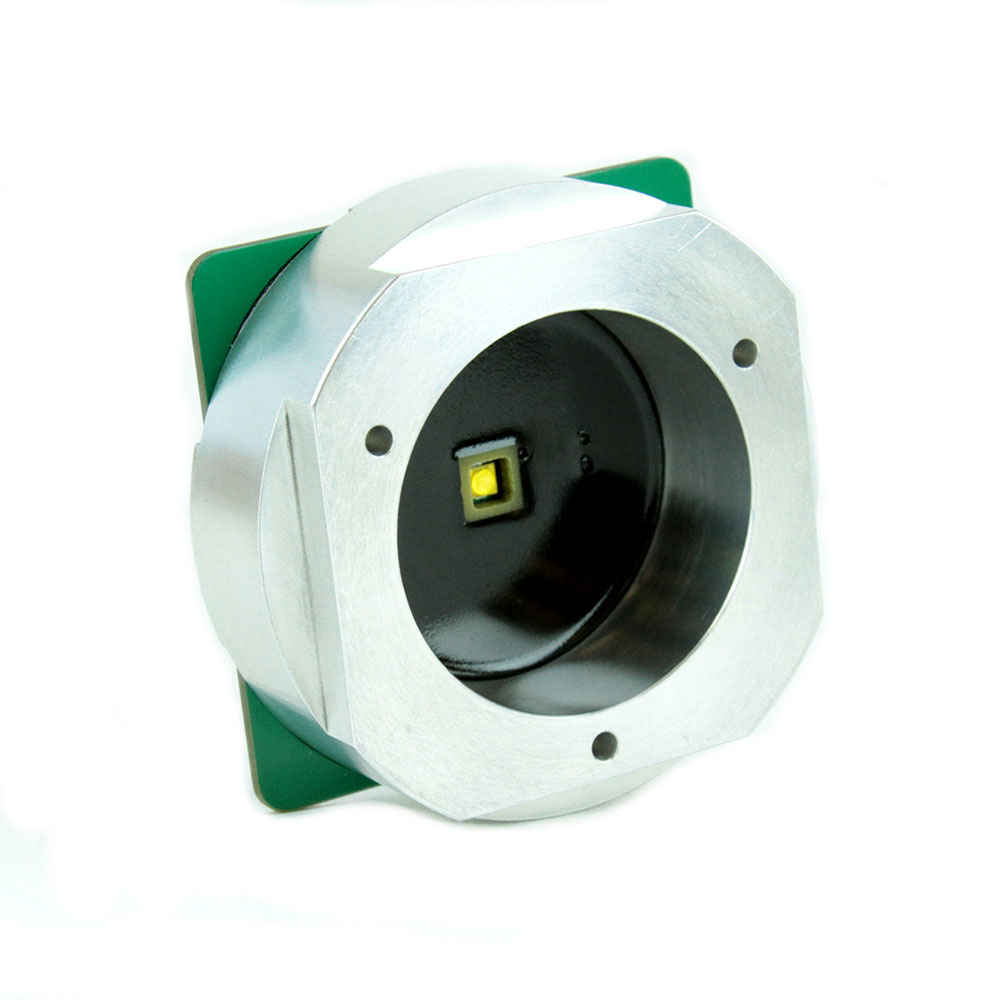

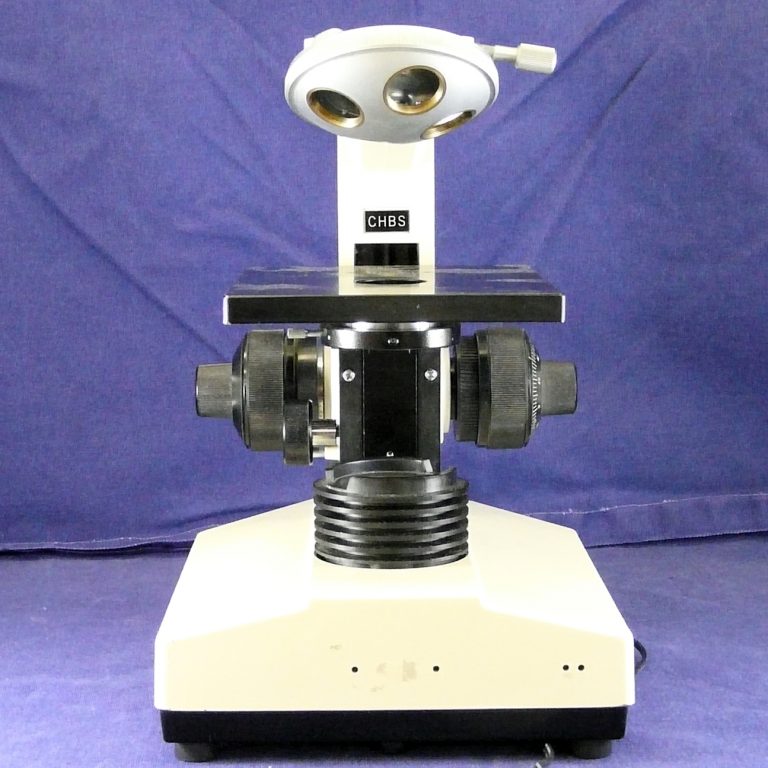

This LED illuminator replaces the Olympus CHBS illuminator on an Olympus CHBS microscope. It provides a much brighter light while using far less power. Full 0-100% intensity control is built in.

  • Custom-designed to fit the form factor of the Olympus CHBS.

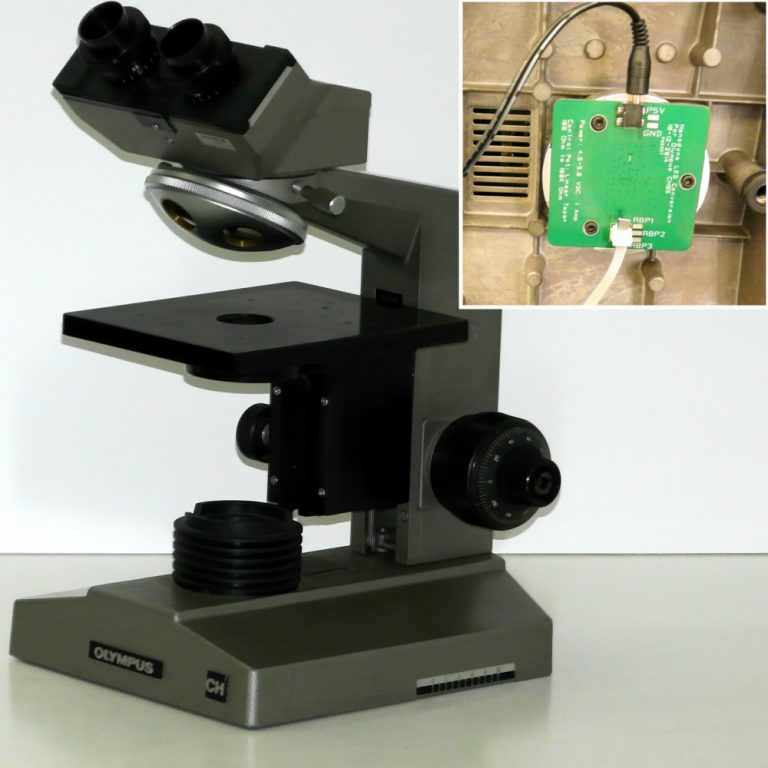

  • Entire illuminator assembly is housed within the base of the microscope.
  • Easy installation with instructions and most tools provided.
  • All illuminator systems are backed by our 3-year warranty.


  • Illuminator Dimensions: 2.75 x 2.75 x 0.94 inch
  • Power Requirements: 5 to 24V/3.5W
  • Brightness: 410 lm (320 lm prior to 3/22/2017)
  • LED Expected Lifetime: 80% original brightness at 88,500 hours
  • Material: Machined 6061 T6 Aluminum

Included Items – Click for Drawing

Installation Instructions – Click for Document
