Zeiss Axiovert 25 Microscope Light

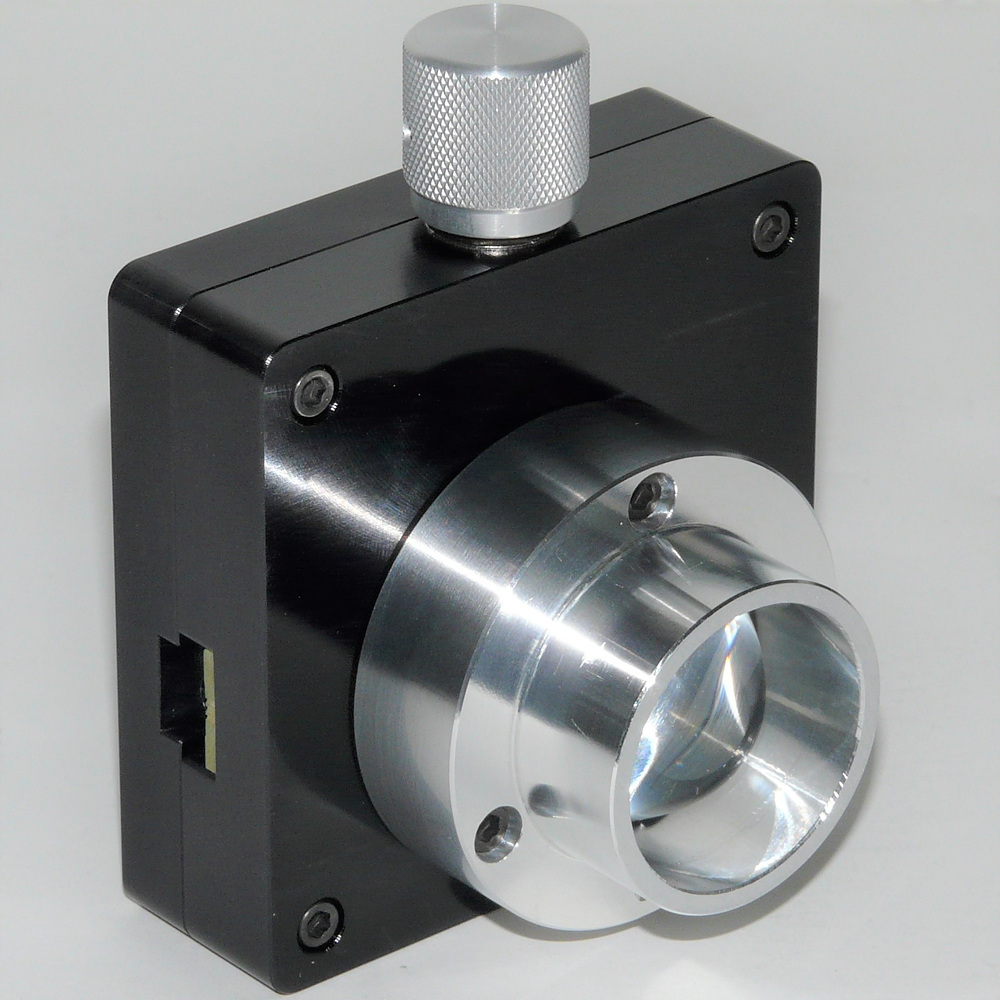

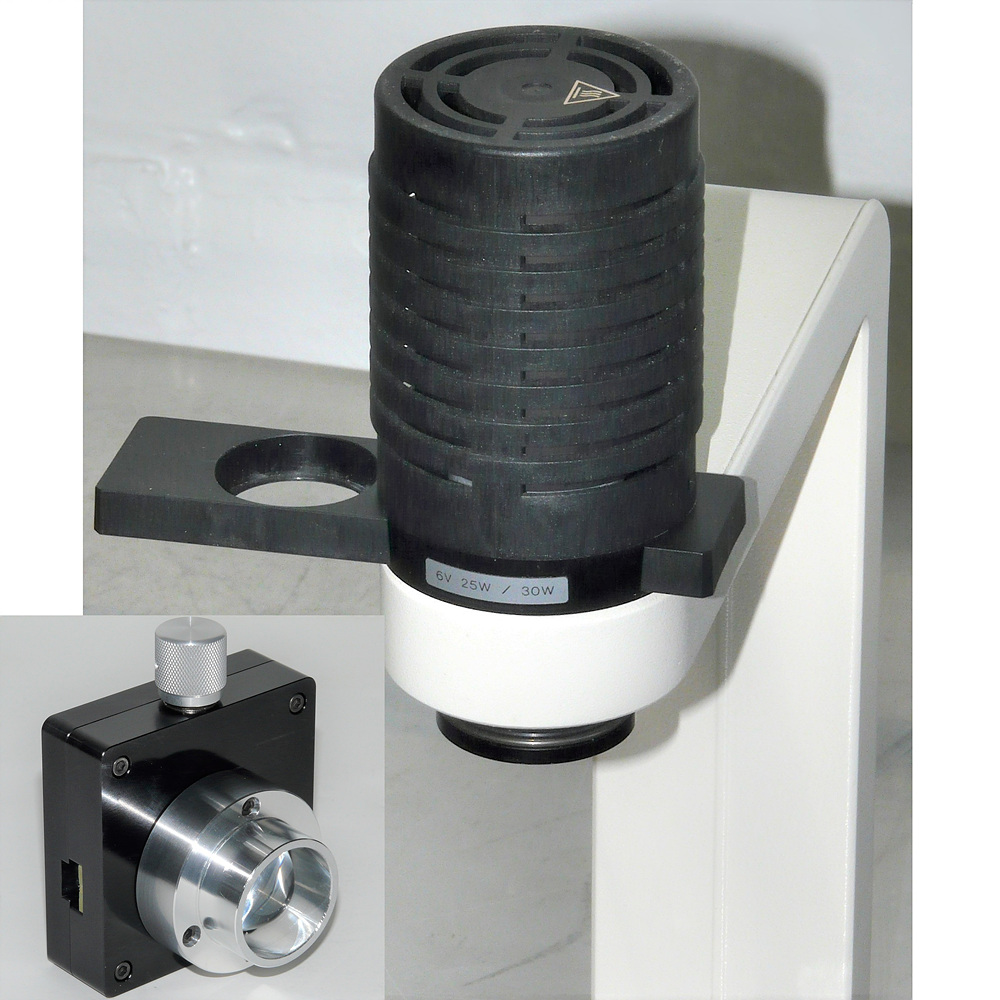

A modern LED replacement for the old 25W halogen Zeiss Axiovert 25 microscope light. Brighter, whiter light. No more bulb replacements. Replaces entire original illuminator assembly, eliminating both problems with the old bulb socket burning or breaking, and power supply failure.

  • Custom-designed to fit the Zeiss Axiovert 25.
  • Due to the convenient location of the illuminator on the microscope, the standard location for the intensity adjustment is on the illuminator housing. Remote intensity control is still an option. Contact us if this is desired.
  • Easy installation with instructions and most tools provided.
  • This illuminator includes its own condenser lens.
  • All illuminator systems are backed by our 3-year warranty.


  • Illuminator Dimensions: 2.45 x 3.01 x 2.10 inch

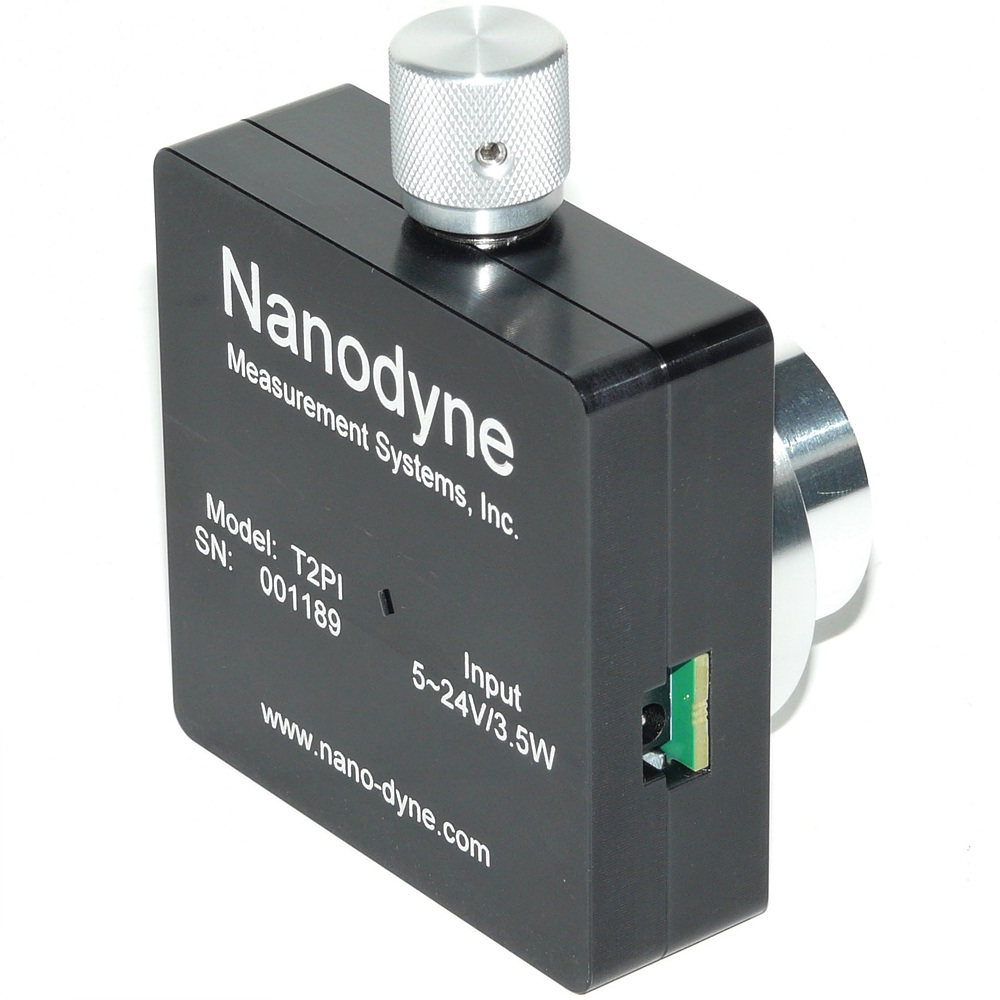

  • Power Requirements: 5 to 24V/3.5W
  • Brightness: 410 lm (320 lm prior to 3/22/2017)
  • LED Expected Lifetime: 80% original brightness at 88,500 hours
  • Material: Machined 6061 T6 Aluminum

Included Items – Zeiss Axiovert 25 Microscope Light

Installation Instructions – Zeiss Axiovert 25 Microscope Light
