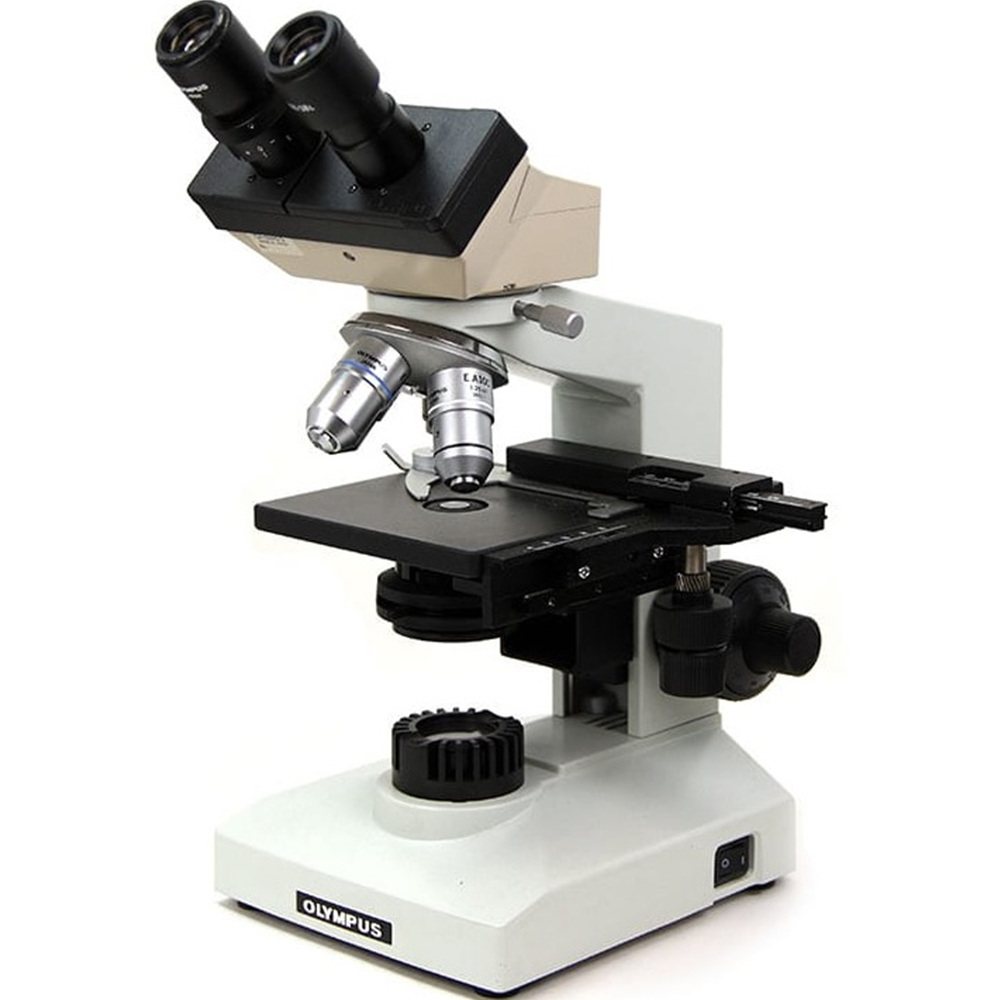

Olympus CHK-G Illuminator

$495.00

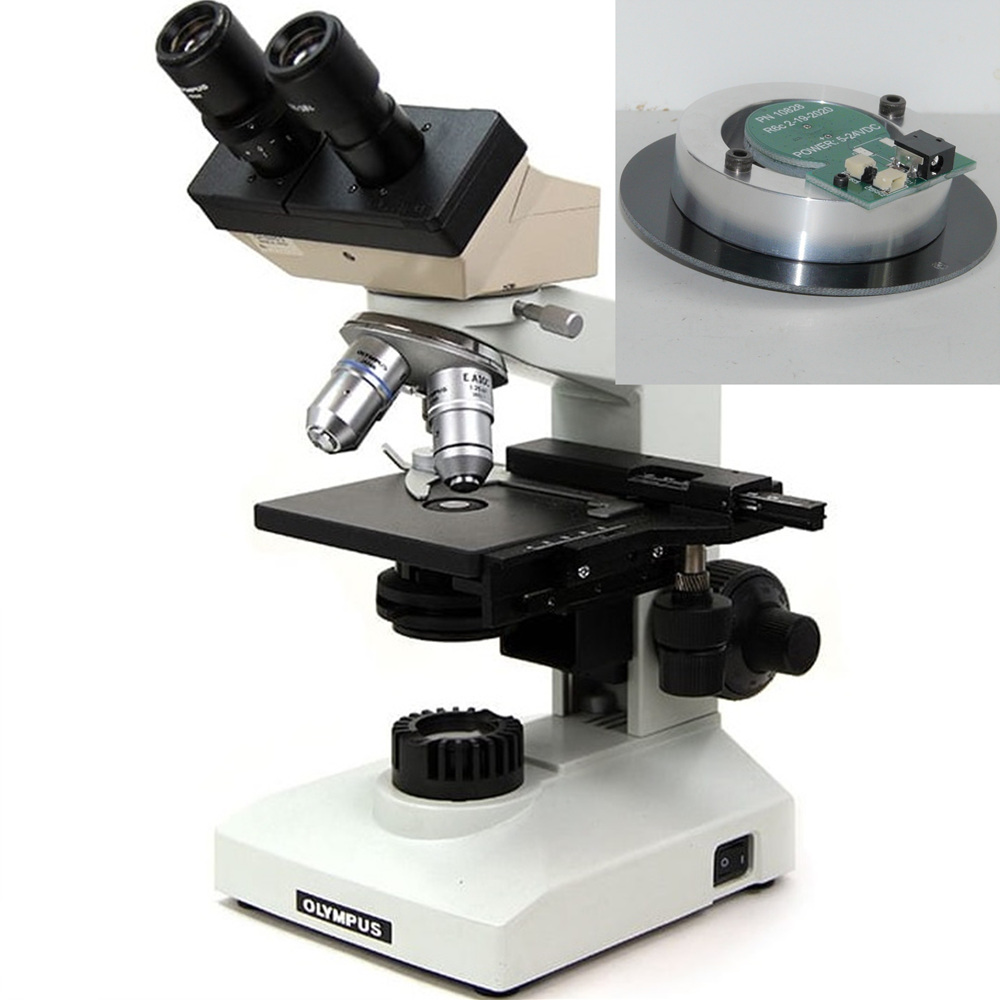

Our LED replacement system for the original Olympus CHK-G microscope illuminator is the perfect solution for a defective lamp or power supply. Provides a whiter, brighter light than the original, while consuming 90% less energy and generating 90% less heat. Intensity control is continuous from 0-100%. Replaces entire original plastic assembly which becomes brittle and falls apart. Problems with heat damaged bulb sockets, connector and power supply failure are all eliminated. Never change bulbs again. Don’t waste money on a new microscope because of a bad illuminator. Your “old” microscope probably has better optics and mechanics than a new one. You can keep your perfectly good microscope working for a fraction of the price of an inferior new one. Bring your microscope up to date. Replace the old olympus CHK-G microscope light with a new Nanodyne LED system. All Nanodyne illuminator systems include the power supply and required cables. Everything required for the illuminator is included. Your new Nanodyne illuminator will add decades of useful life to your microscope.

  • Custom-designed to replace the original Olympus CHK-G illuminator.

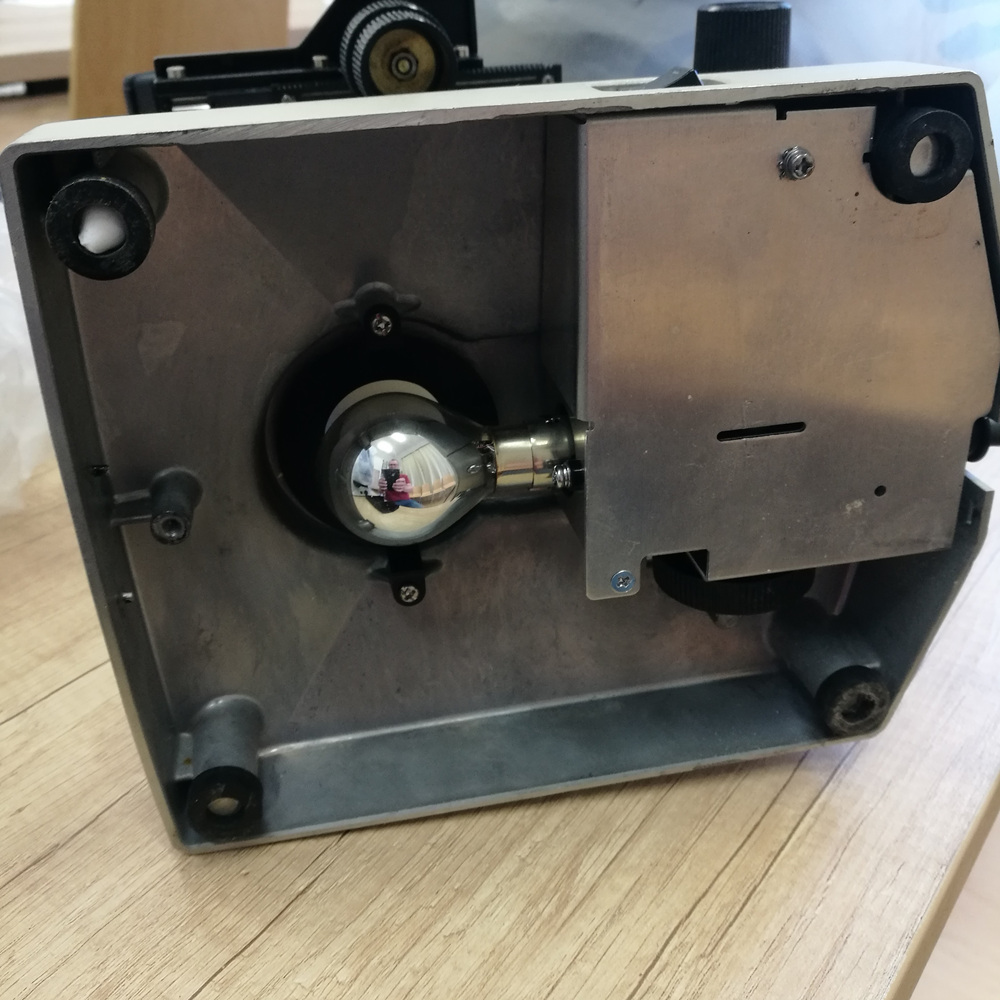

  • Entire illuminator assembly is housed within the base of the microscope.
  • Easy installation and most tools provided.
  • All illuminator systems are backed by our 3-year warranty.

Specifications:

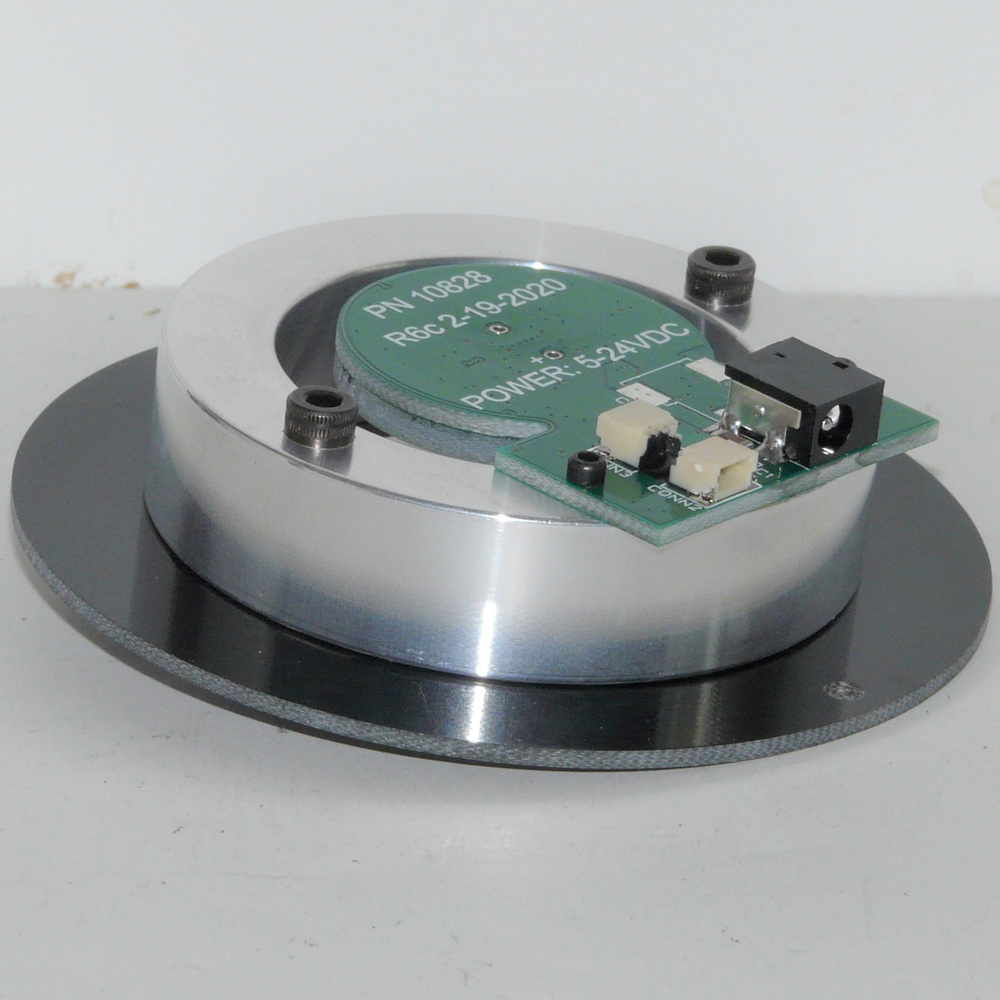

  • Illuminator Dimensions: 2.2 inch diameter x 0.57 inch high
  • Power Requirements: 5 to 24V/3.5W

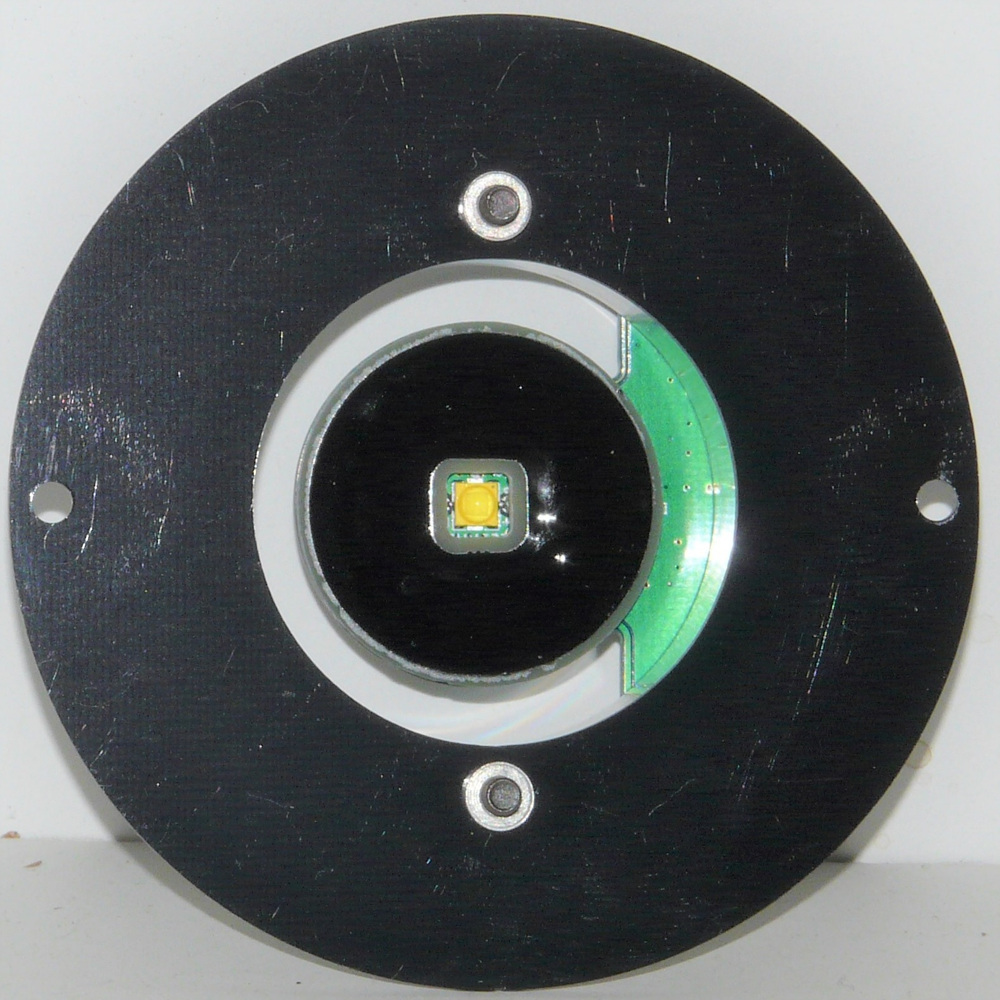

  • Brightness: 410 lm
  • LED Expected Lifetime: 80% original brightness at 88,500 hours
  • Material: Machined 6061 T6 Aluminum

Included Items
