Olympus FH Illuminator

$495.00

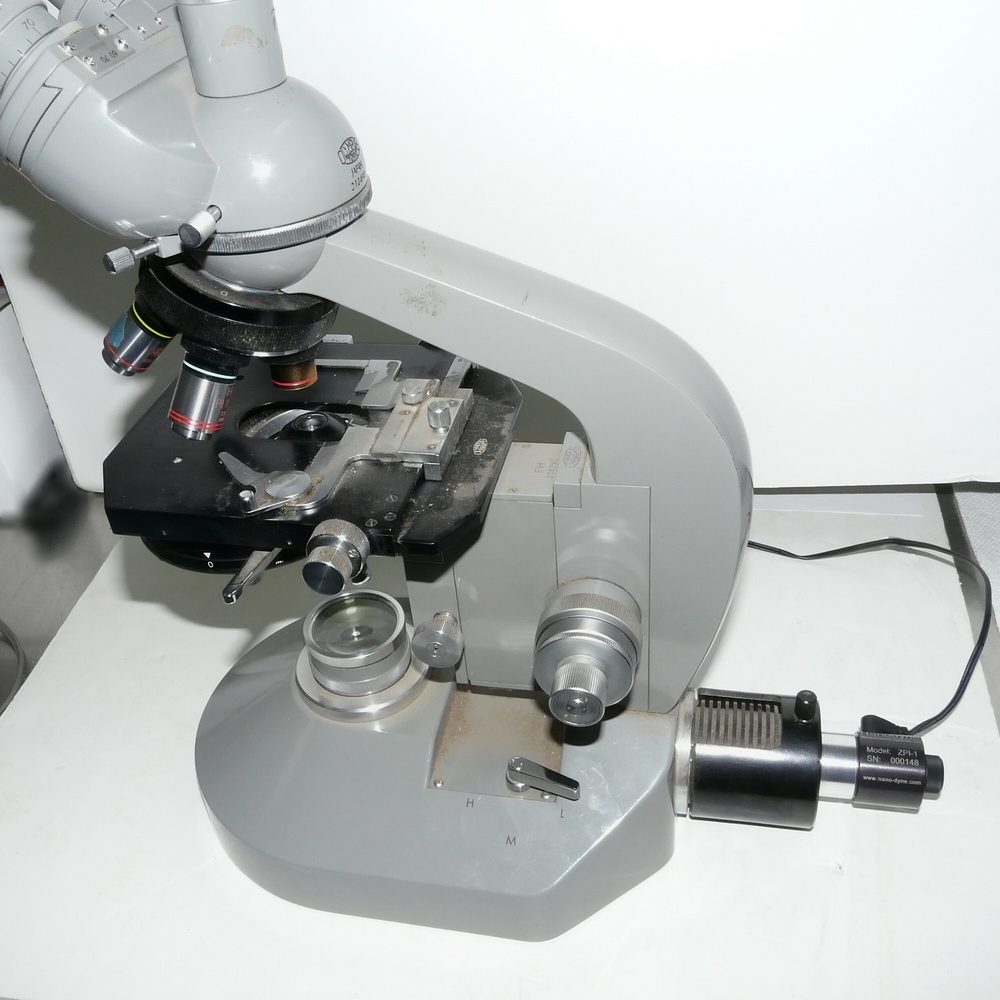

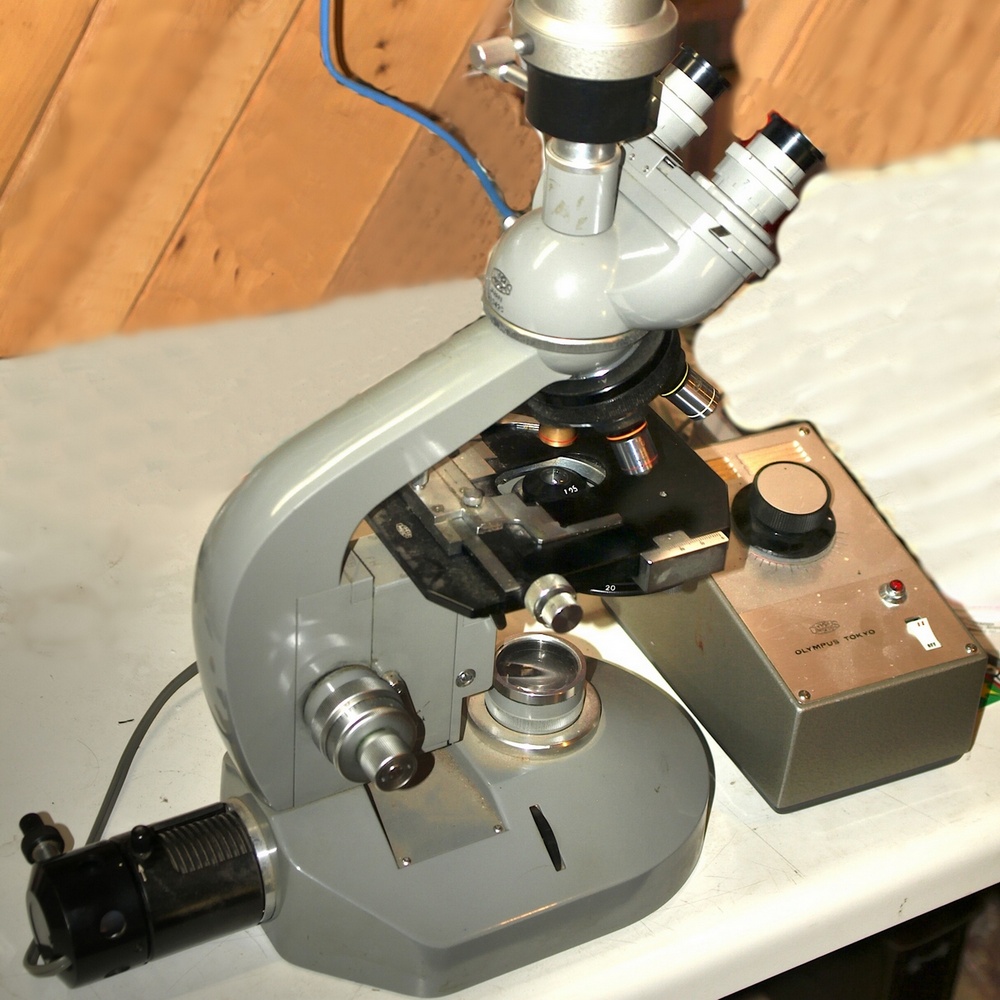

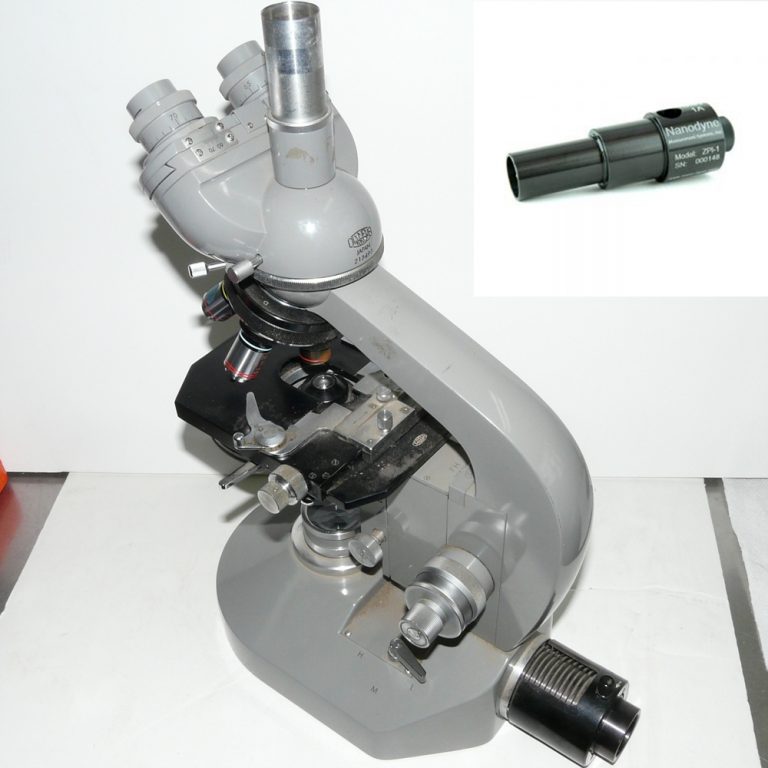

This modern LED illuminator replaces the old Olympus FH Illuminator. The LED provides a much brighter, whiter light while consuming 90% less energy and generating 90% less heat. Eliminate bulb replacements and free up bench space. The unit is self-contained with no separate power adjustment box like the original. Full range intensity control from 0 to 100%.

If the illuminator port on your microscope has an ID of 26mm (1.02 inch) this illuminator will probably fit. Check the above pictures and the drawing in the link below for dimensions to compare with your microscope if you are not sure. If it does not fit you can return it.

  • Custom-designed to fit the form factor of Olympus FH microscope
  • Brightness control potentiometer on the new illuminator is on the unit
  • Easy installation
  • All illuminator systems are backed by our 3-year warranty.

Specifications:

  • Illuminator Dimensions:
    • Diameter of mounting section: 1.020 inch diameter
    • Total length: 4.01 in
  • Power Requirements: 5 to 24V/3.5W
  • Brightness: 410 lm (320 lm prior to 3/22/2017)
  • LED Expected Lifetime: 80% original brightness at 88,500 hours
  • Material: Anodized 6061 T6 Aluminum

Included Items – Click for Drawing

Installation Instructions – Click for Document
