Leica DMLB 100W Illuminator

Description

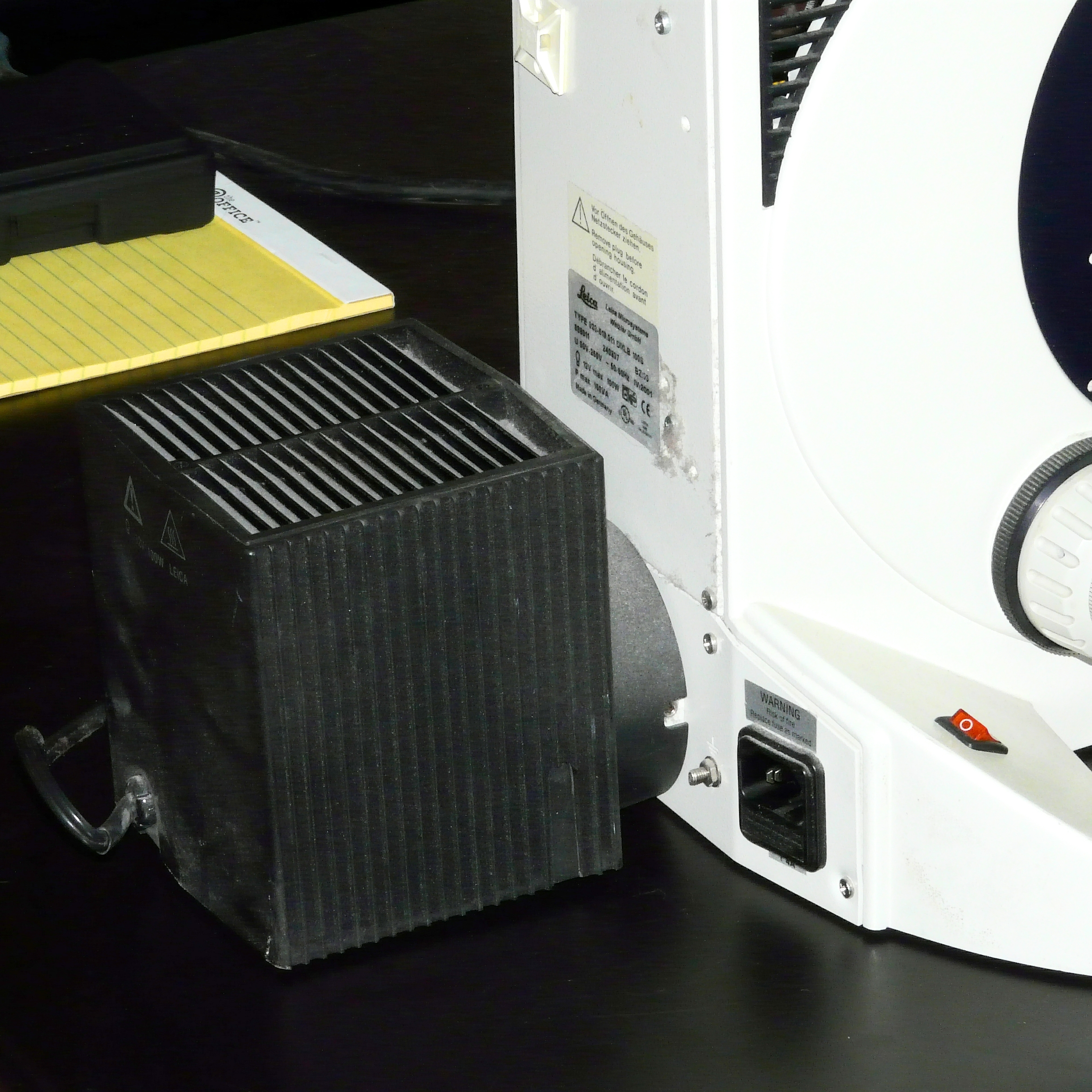

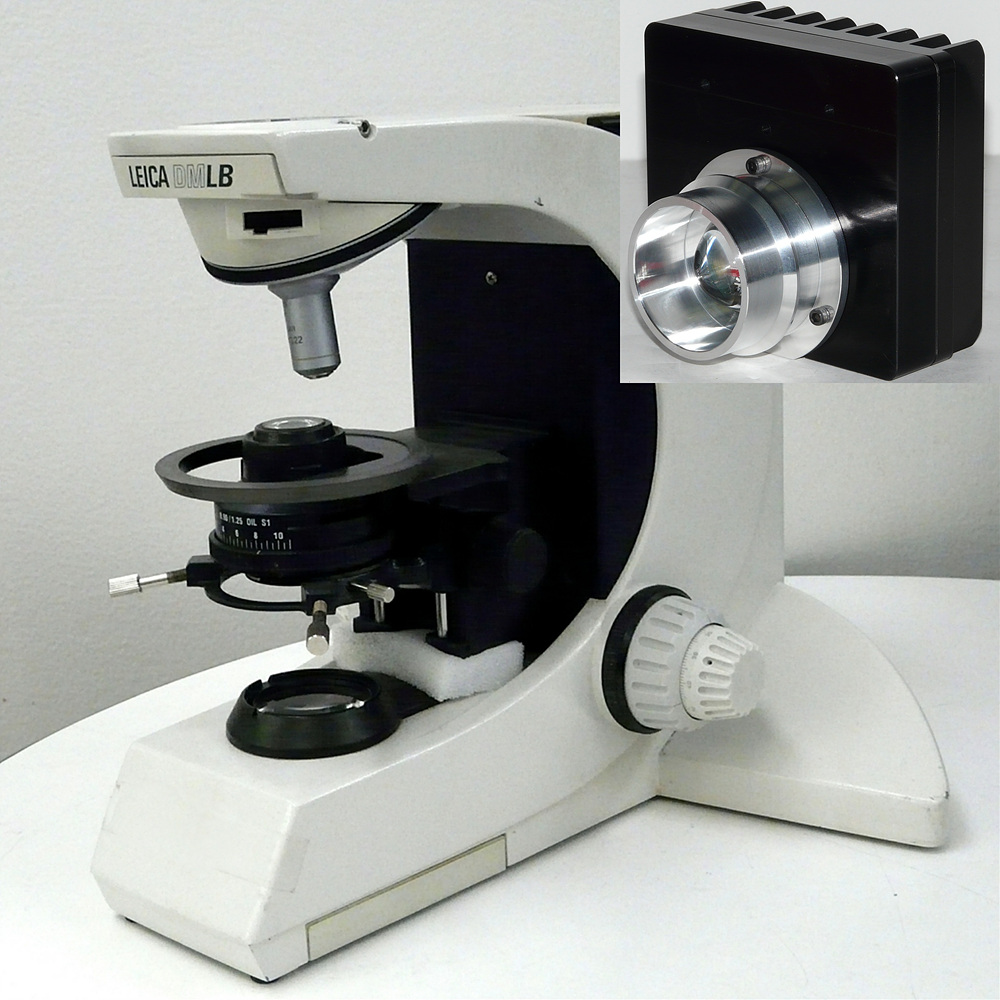

This LED illuminator replaces the original Leica DMLB 100W illuminator. It provides a whiter, brighter light than the original, while using far less power. Intensity control is continuous from 0-100%.

• Custom-designed to fit the form factor of the Leica DMLB 100W.
• Option for brightness control potentiometer on the new illuminator or on an existing control on the microscope.
• Easy installation with instructions and most tools provided.
• All illuminator systems are backed by our 3-year warranty.

Specifications:

• Illuminator Dimensions: 3.50 x 3.25 x 3.105 inch
• Power Requirements: 5V 2.5A
• Brightness: 825 lm
• LED Expected Lifetime: >50,000 Hours
• Material: Anodized 6061 T6 Aluminum

Included Items – Click for Drawing

Installation Instructions – Click for Document
