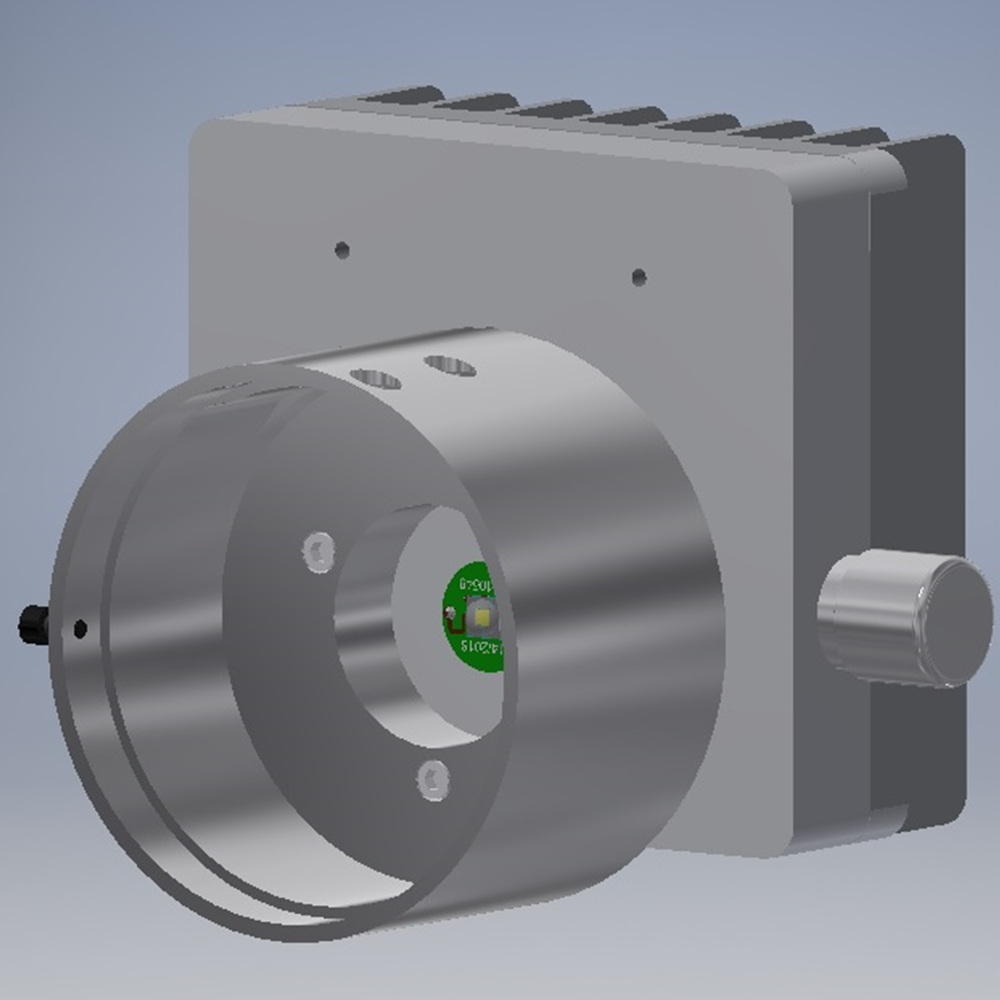

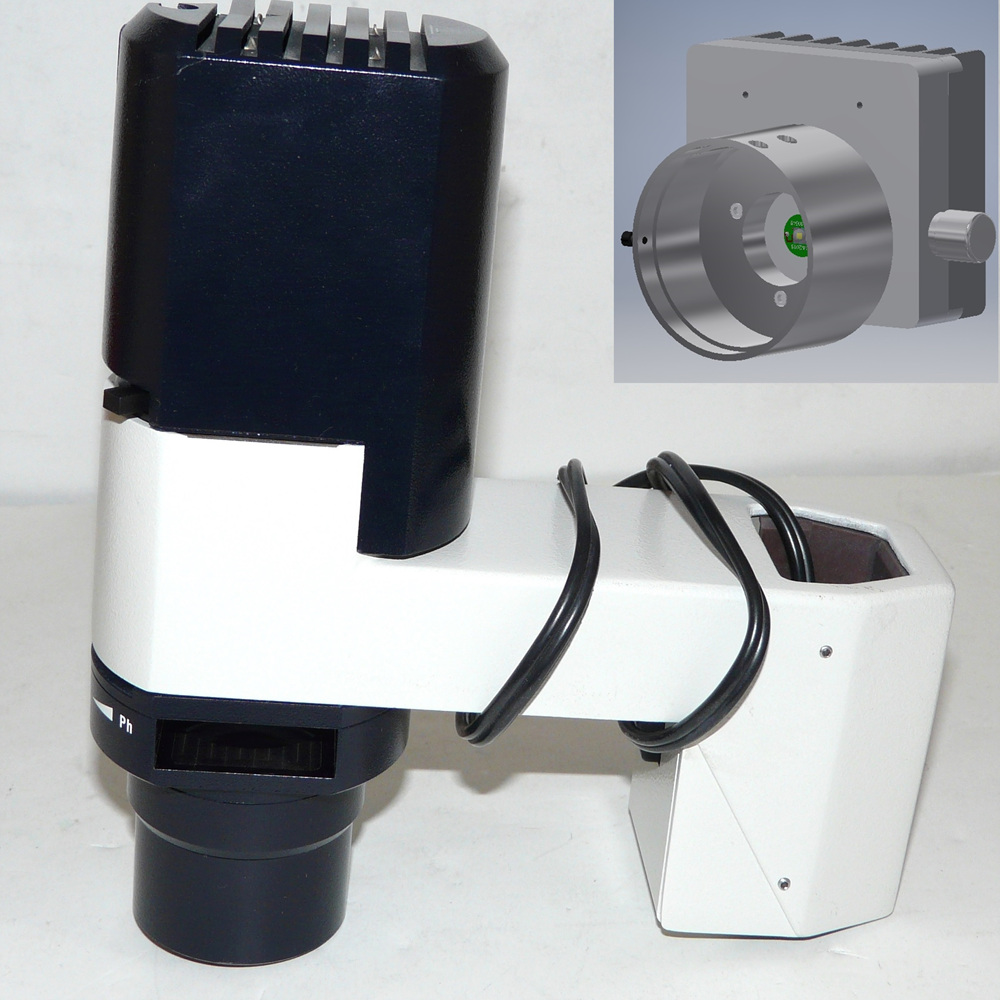

This LED illuminator replaces the original Leica DMIL illuminator. Provides a whiter, brighter light than the original, while consuming 90% less energy and generating 90% less heat. Intensity control is continuous from 0-100%. Problems with heat damaged bulb sockets, connector and power supply failure are all eliminated. No more bulb replacements. Problems with heat from the halogen bulb are eliminated, as are bulb changes. All the old components for the lighting system are replaced. Don’t buy a new microscope for thousands of dollars because of a bad illuminator. You can keep your perfectly good microscope working for a fraction of the price of an inferior new one. All Nanodyne illuminator systems include the power supply and required cables. Everything required for the illuminator is included. Your new Nanodyne illuminator will add decades of useful life to your microscope.

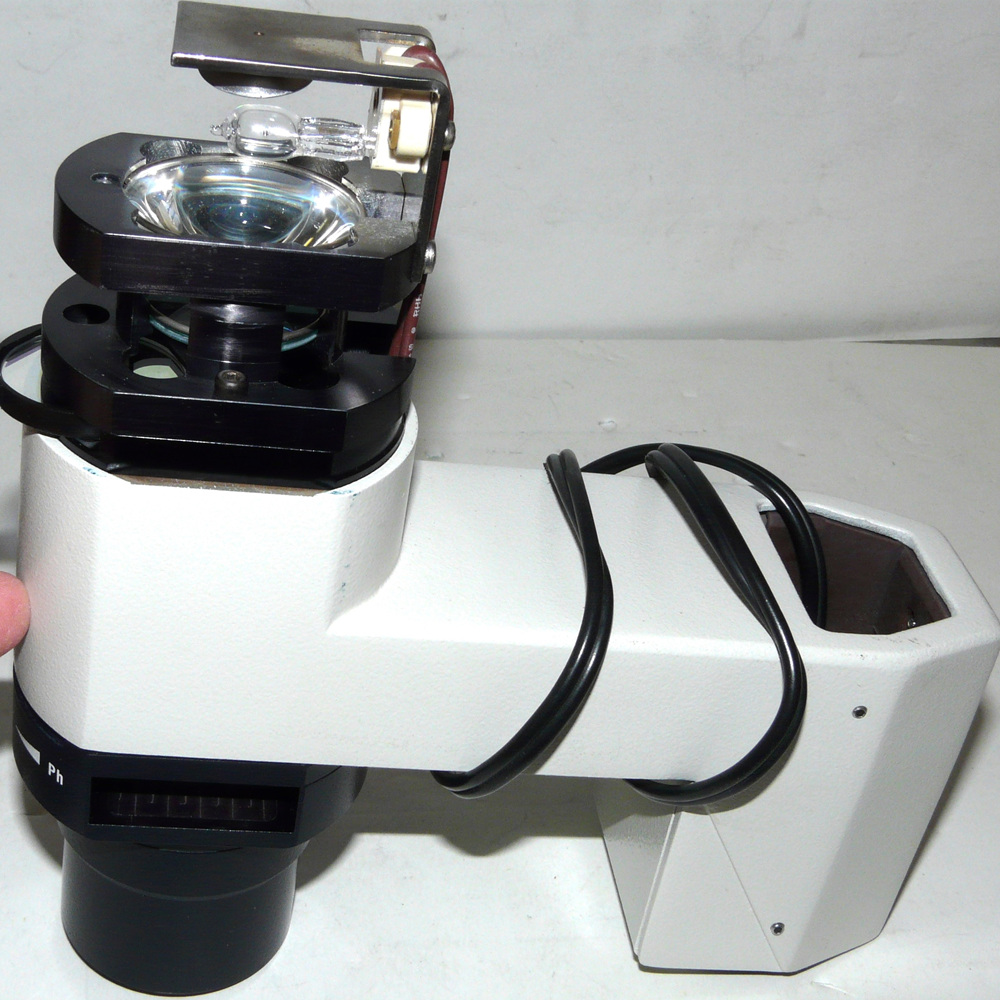

- Custom-designed to replace the original Leica DMIL illuminator 35W OEM lamp.
- Due to the convenient location of the illuminator on the microscope, the standard location for the intensity adjustment is on the illuminator housing. Remote intensity control is still an option. Contact us if this is desired.
- Easy installation and most tools provided.
- All illuminator systems are backed by our 3-year warranty.
Specifications:
- Illuminator Dimensions: 3.50 x 3.25 x 3.10 inch
- Power Requirements: 5 to 24V/10W
- Brightness: 825 lm
- LED Expected Lifetime: > 50,000 hours
- Material: Anodized 6061 T6 Aluminum
Included Items – Click for Drawing
*NOTE: Set screws are pre-installed. Please inspect aluminum adapter before contact us.
